Flow Amplifier (Danfoss)

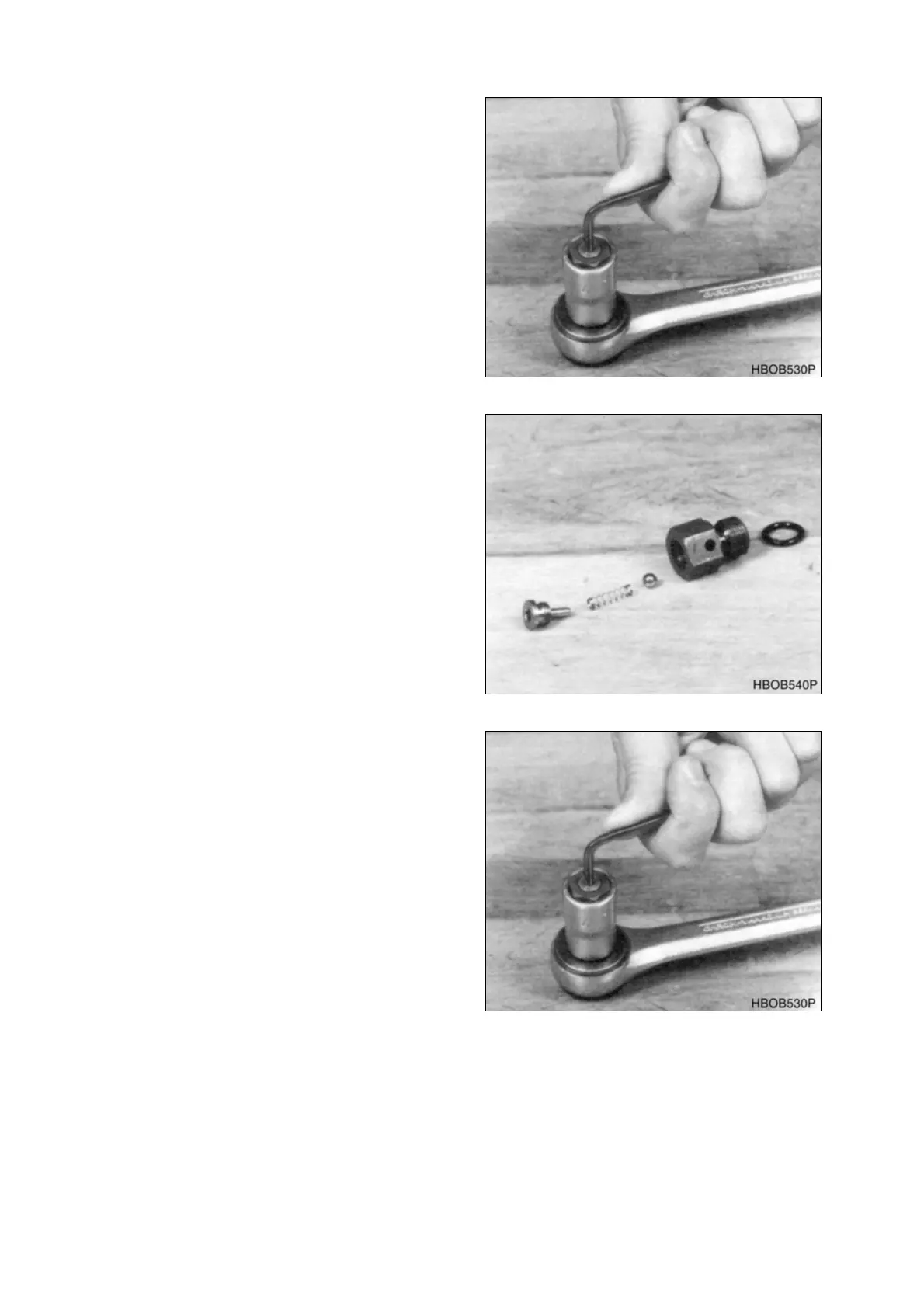

13. Dismantling of check valve.
A. Unscrew plug with 4 mm hexagon
key and hexagon socket for 17 mm
external hexagon.
B. Check valve shown dismantled.
14. Dismantling of shock valve / suction valve.
A. Unscrew lock nut with hexagon
socket for 13 mm external hexagon.
Use a mandrel.
NOTE: When readjusting shock valve
hold lock nut with 13 mm ring
spanner.
Figure 54
Figure 55
Figure 56
