Daewoo Mega 500-V - Page 599

S0709665K
Page 45
Flow Amplifier (Danfoss)
I. Install screw with spring washer.
J. Install screw with spring washer.
Tightening torque: 2.5 ±0.5
daNm.(220 ±45 in lb).
14. Installation of end cover at LS-connection.
A. Install guide screws.
B. Install remote control valve with
Vaseline.

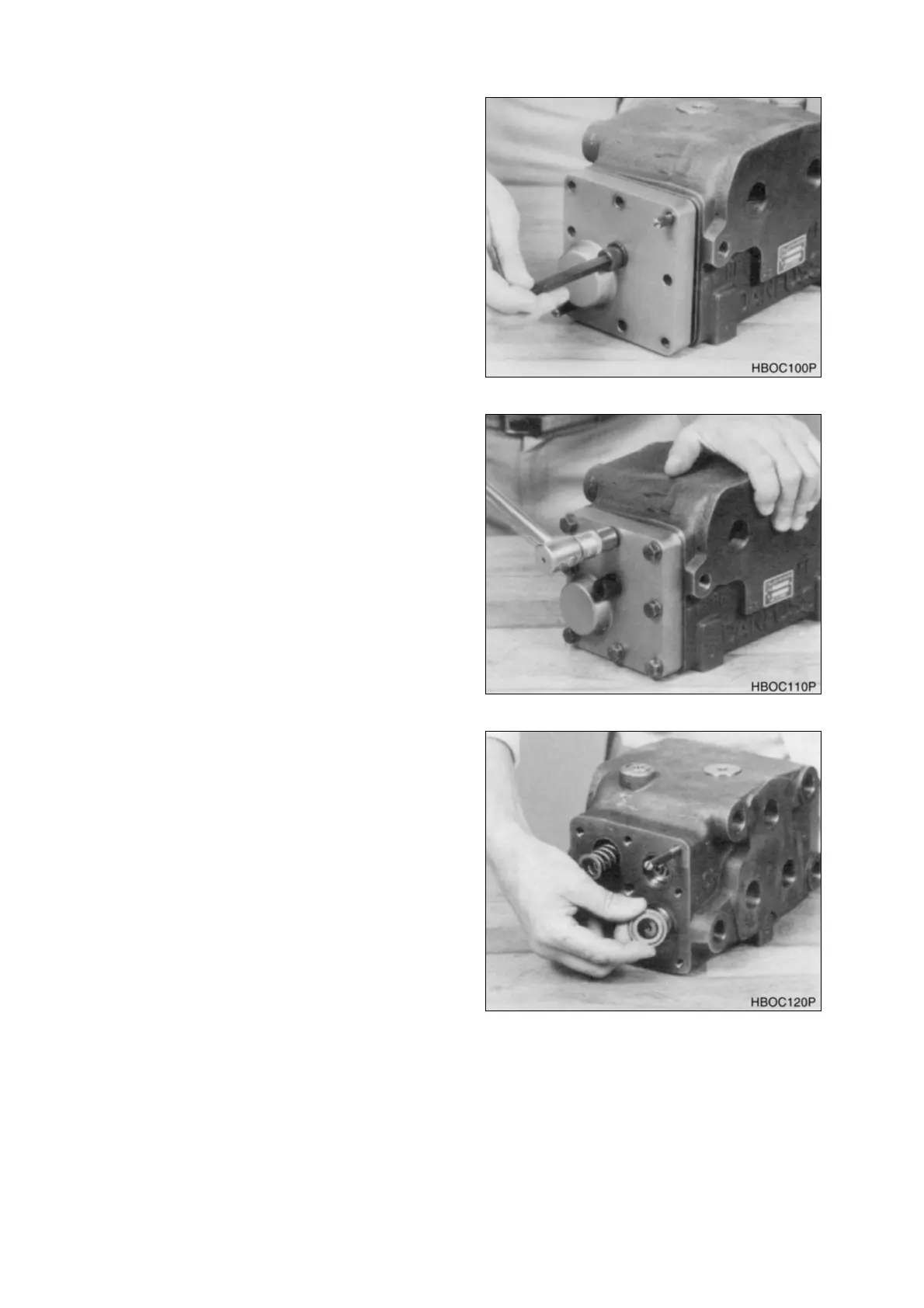

Figure 110
Figure 111
Figure 112
