Daewoo Mega 500-V - Page 650

S0802190K
Page 5
Electrical System
Return to Master Table of Contents
AHS0030L

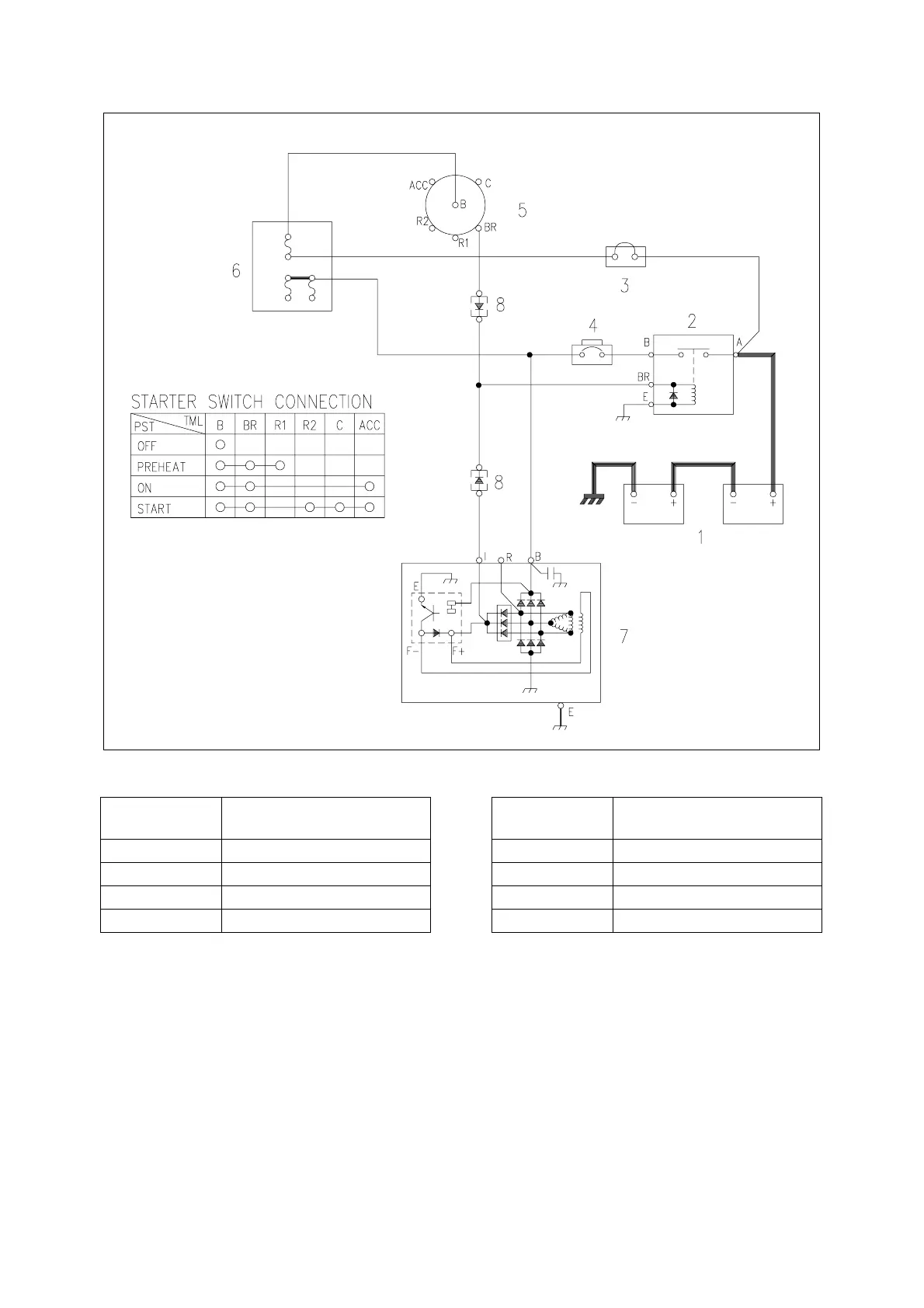

Figure 1 ELECTRICAL POWER CIRCUIT DIAGRAM
Reference
Number
Description
1 Battery
2 Battery Relay
3 Fusible Link
4 Circuit Breaker
5 Starter Switch
6 Fuse Box
7 Alternator
8 Diode
Reference
Number
Description
