S0802190K
Page 7
Electrical System
Return to Master Table of Contents
AHS0040L

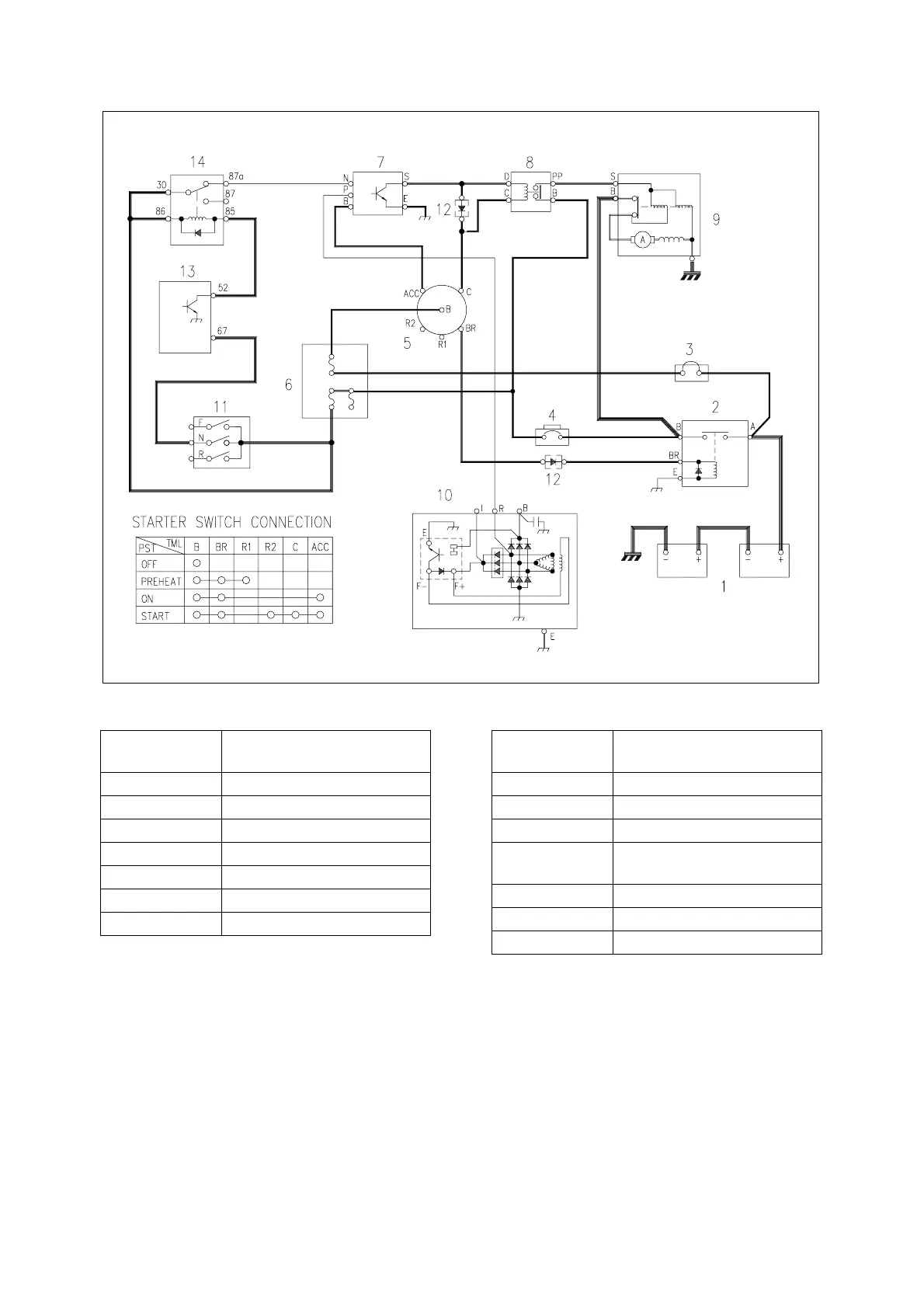

Figure 2 STARTER CIRCUIT (1) - WHILE STARTING
Reference
Number
Description
1 Battery
2 Battery Relay
3 Fusible Link
4 Circuit Breaker
5 Starter Switch
6 Fuse Box
7 Starter Controller
8 Starter Relay
9 Starter
10 Alternator
11
Transmission Selector
Switch
12 Diode
13 Transmission Controller
14 Safety Start Relay
Reference
Number
Description
