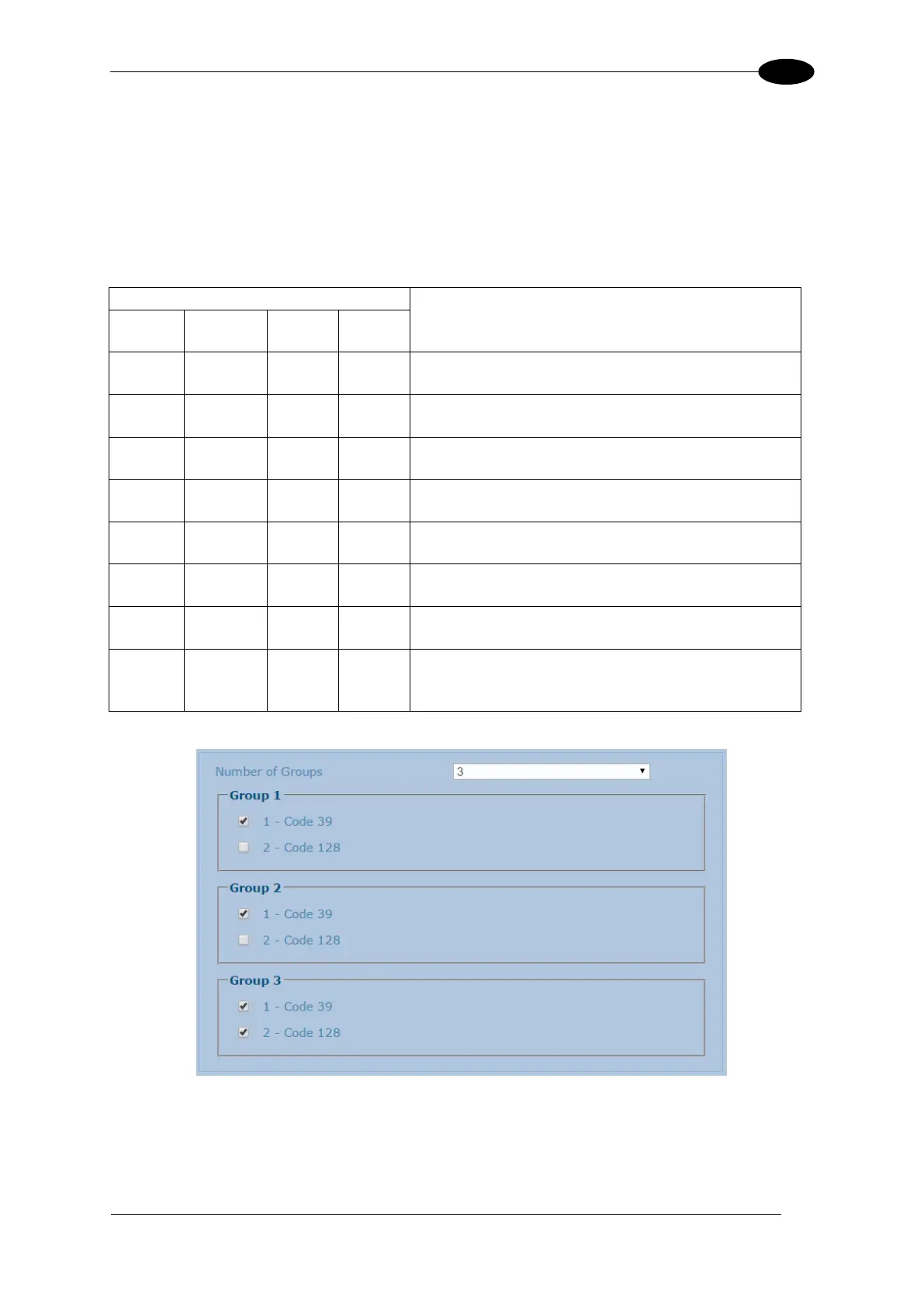

Example 3
Code label setting#1 = Code 39
Code label setting#2 = Code 128
Logical Combination Rule = 1&1&1^2
Defines three different groups. The first two groups expect a Code 39 label while the third
one expects a Code 39 label OR a Code 128 label.
Decoded Code Symbology
Output Message
First
Label #1
Second
Label #1
Third
Label #1
Label #2
---
---
---
---
<Header><Global No Read
Message><Terminator>
X
---
---
---
<Header><Global No Read
Message><Terminator>
---
X
---
---
<Header><Global No Read
Message><Terminator>
---
---
X
---
<Header><Global No Read
Message><Terminator>
---
---
---
X
<Header><Global No Read
Message><Terminator>
X
X
X
---
<Header><Code 39 data><DPS>< Code 39
data><DPS>< Code 39 data><Terminator>
X
X
---
X
<Header><Code 39 data><DPS><Code 39
data><DPS><Code 128><Terminator>
X
X
X
X
<Header><Code 39 data><DPS><Code 39
data><DPS><First decoded code/Multiple Read
Message string><Terminator>
