AV7000 LINEAR CAMERA REFERENCE MANUAL
122
4

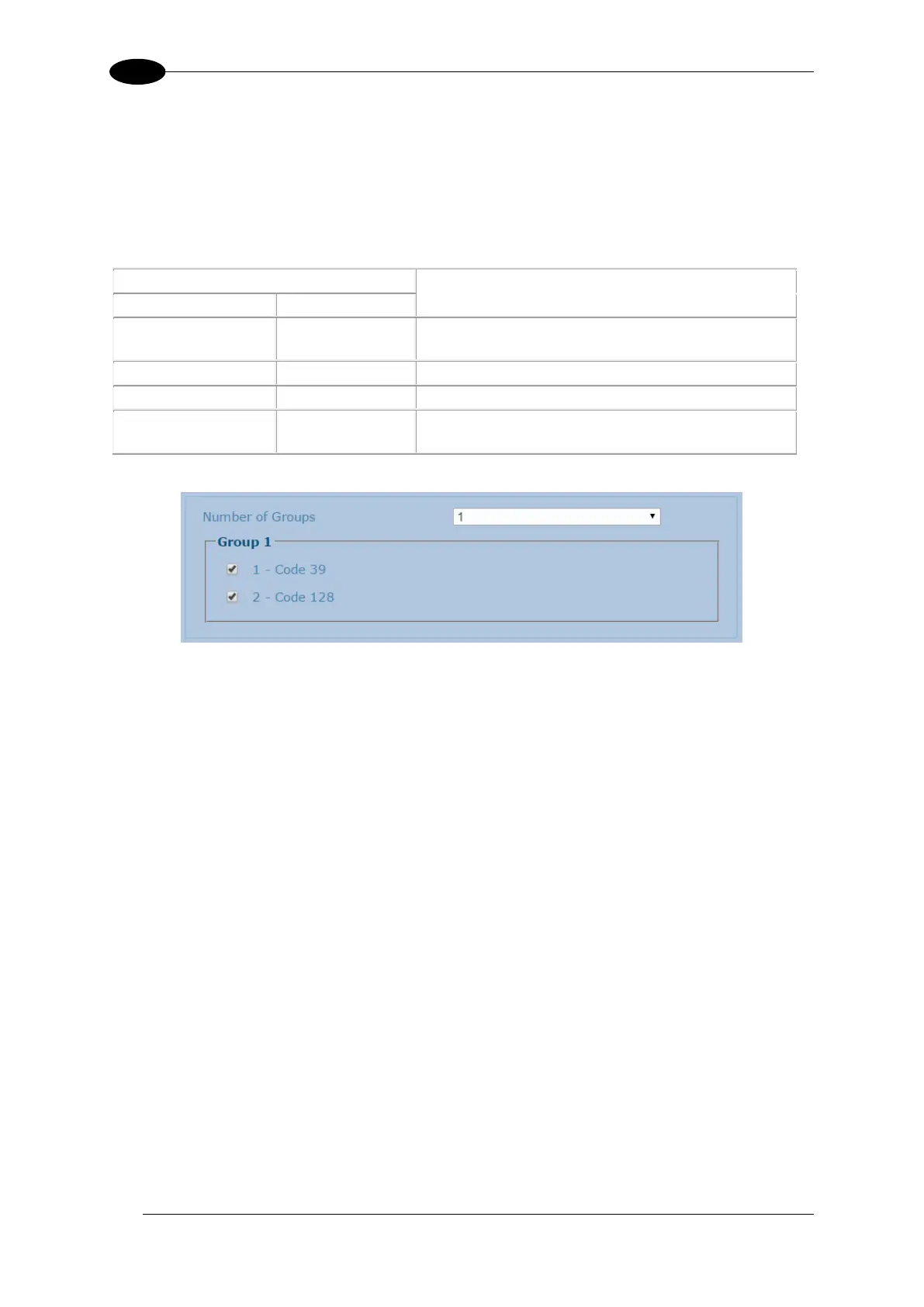

Example 2
Code label setting#1 = Code 39
Code label setting#2 = Code 128
Logical Combination Rule = 1^2
Defines a single group expecting a Code 39 label OR a Code 128 label.
Decoded Code Symbology
Output Message
Label #1
Label #2
---
---
<Header><Global No Read
Message><Terminator>
X
---
<Header><Code 39 data><Terminator>
---
X
<Header><Code 128 data><Terminator>
X
X
<Header><First decoded code/Multiple Read
Message string ><Terminator>
