Barcode Configuration | Logical Combination Rule
The following are examples of rules used with Logical Combination selection in
Barcode Configuration. For all the following examples the No Read Message parameter is
set to Global No Read Message.

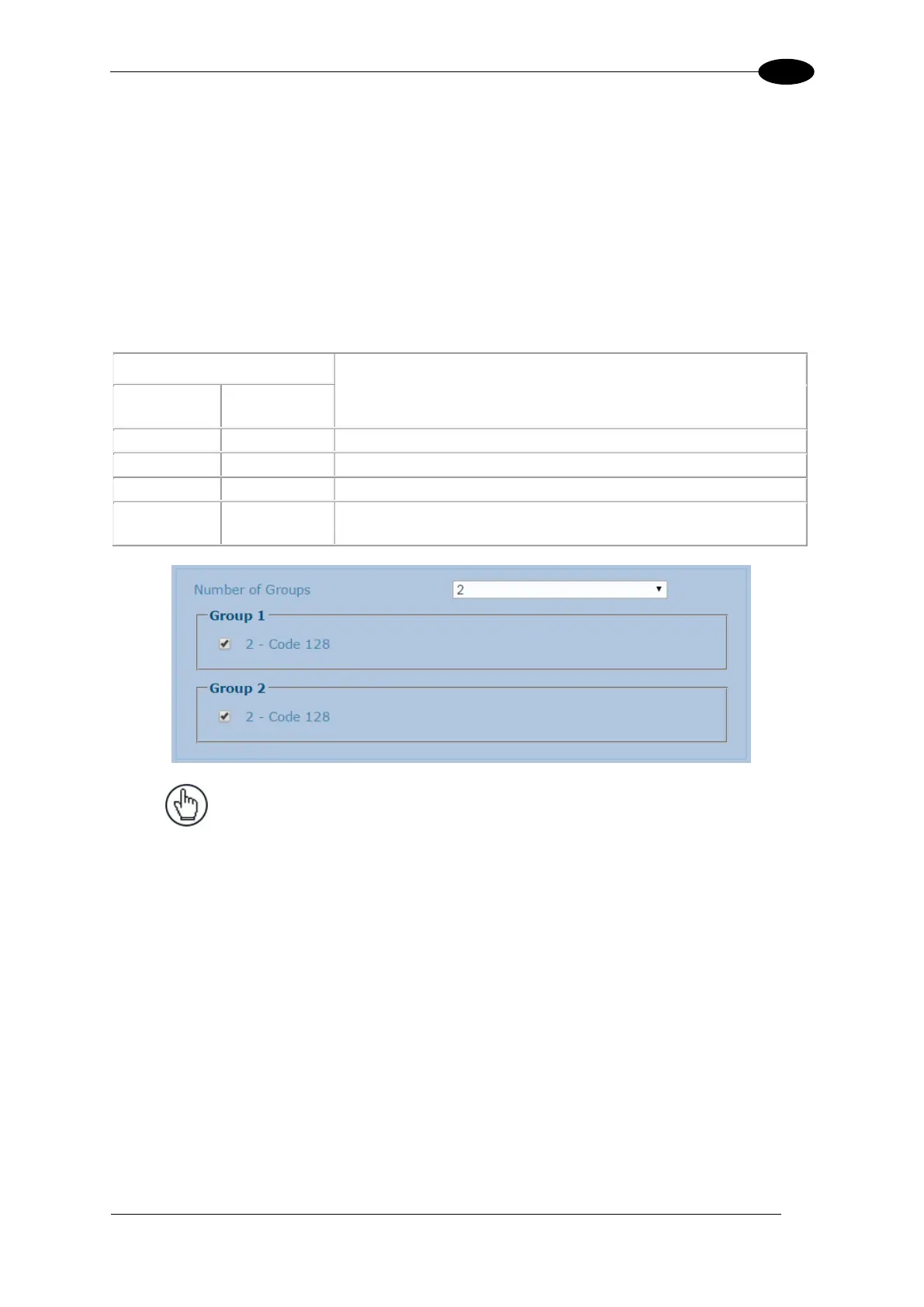

Example 1
Code label setting#1 = Code 128
Logical Combination Rule = 1&1
Defines 2 groups, each of them expecting a Code 128 label.
Decoded Code Symbology
Output Message
First Label
#1
Second Label
#1
---
---
<Header><Global No Read Message><Terminator>
X
---
<Header><Global No Read Message><Terminator>
---
X
<Header><Global No Read Message><Terminator>
X
X
<Header><Code 128 data><Data Packet Separator><Code
128 data><Terminator>
NOTE: If Multiple Read Message is enabled and a third label
belonging to the Code 128 symbology is decoded, the Multiple
Read string will be transmitted instead. If the Multiple Read
Message is disabled, the third code label is ignored and only the
first two codes are transmitted.
For advanced formatting, if the Send All Multiple Read
Labels parameter is enabled, then all three labels are sent in
the output message; the multiple read label is separated by its
own Multiple Read Label Separator String which should be
different from the Data Packet Separator (DPS).
