AV7000 LINEAR CAMERA REFERENCE MANUAL
Distance to
Trigger Line
State
Select Upstream or Downstream. This parameter specifies if the distance from the
physical Trigger Line is required Upstream or Downstream (i.e. Trigger Source) To
the expect receiving point of the Protocol Index, measured in mm. It is used together
with the Minimum Distance Between Two Consecutive Objects (below) parameter
to assign the Protocol Index information to the correct package.
Min Distance
Between Two
Consecutive
Objects

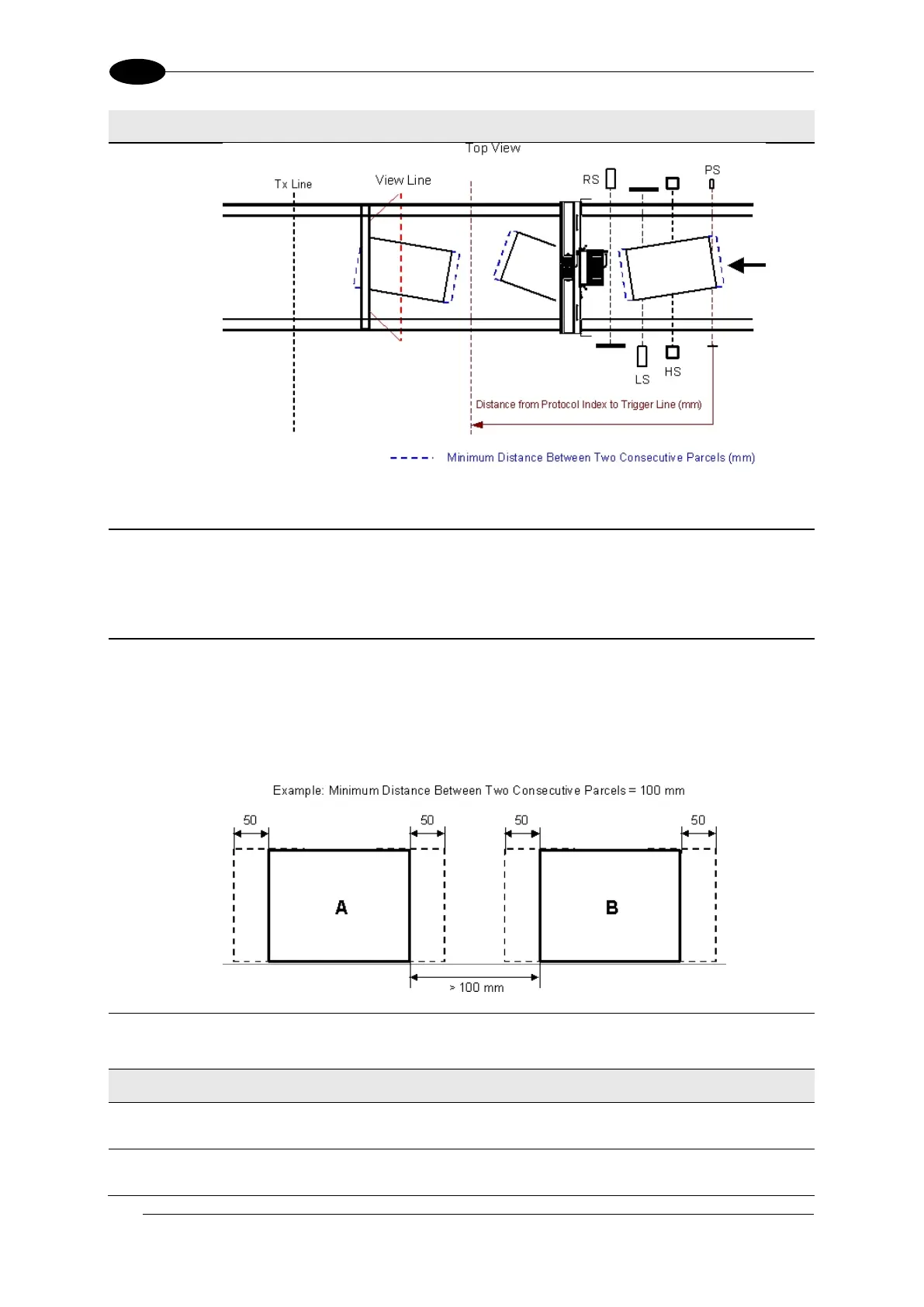

Enter the smallest possible distance between system packages in the field provided.
This specifies the minimum distance (in mm) between two consecutive packages. It is
used to compensate for imprecision in the Distance from Protocol Index to Trigger
Line parameter by virtually lengthening the package. This parameter implies that if
two consecutive packs are placed on the conveyor at a distance less than the
minimum, a Protocol Index assignment error will occur.
Select Disable, Standard, or Advanced from the drop-down list. Advanced Logging
is used during calibration or troubleshooting to confirm that the protocol index
message is solidly found on the correct box.
Socket: Transport n Settings
Select the check box to enable User Sockets and reveal the related configuration
options.
Socket selected from the drop-down list.
