AV7000 LINEAR CAMERA REFERENCE MANUAL
222
5
RangeFinder Mechanical Installation
Install the RangeFinder according to the AV7000 application drawing. The RangeFinder is
typically installed 1924 mm [75.75 in] above the conveyor.
1. Attach mounting brackets to both sides of RangeFinder (if not already installed). Place
each bracket over its mounting post(s) and tighten the retaining screws.

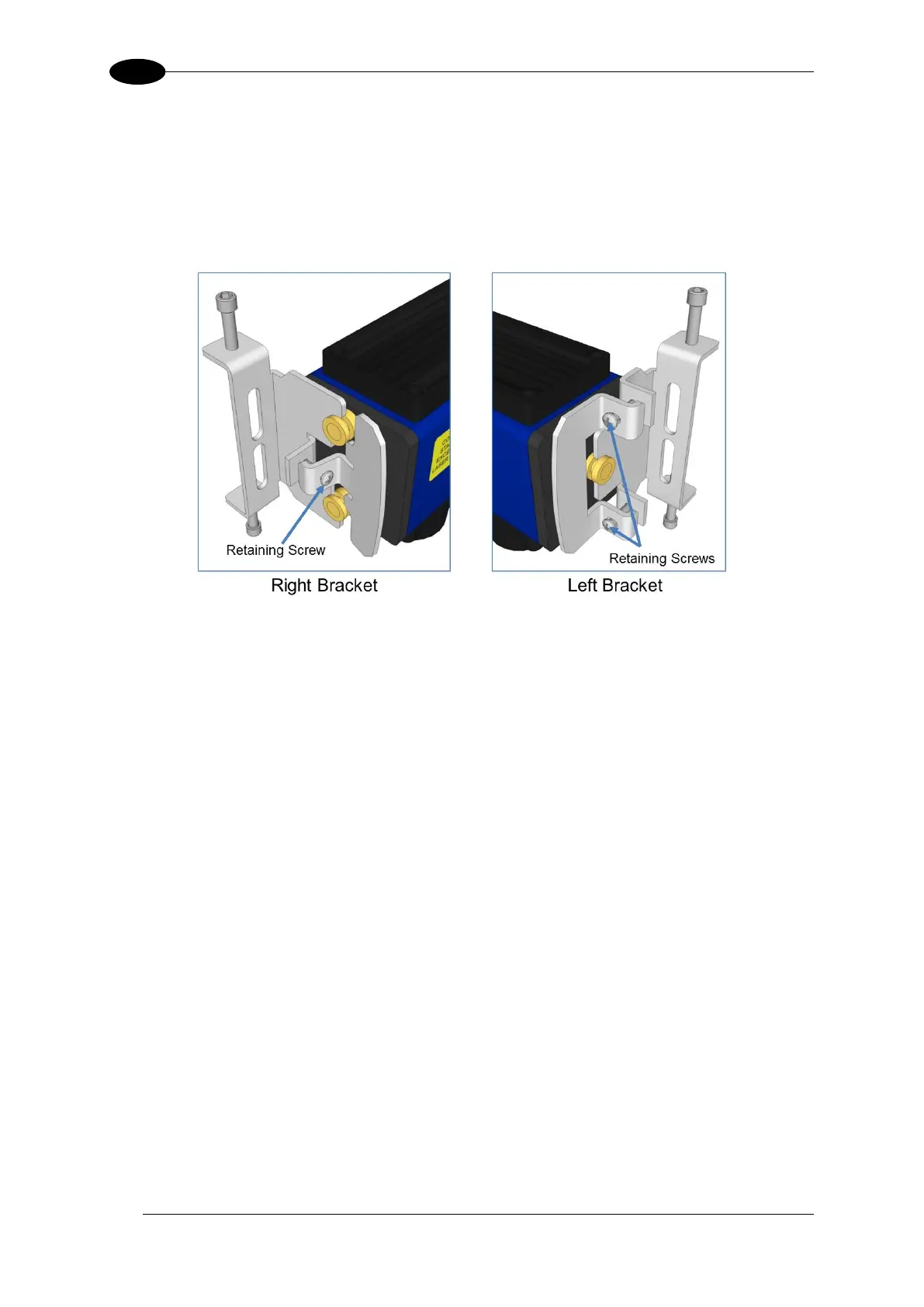

Figure 104: Attaching the RangeFinder Brackets
2. Lift RangeFinder into position as marked on the mounting structure or as specified in the
application drawing. Make sure the RangeFinder is positioned facing in the correct
direction.
3. Attach the RangeFinder to the mounting structure with T-bolts (only finger tighten before
leveling).
