Datalogic AV7000 Reference Manual

IMAGING FEATURES
223
5

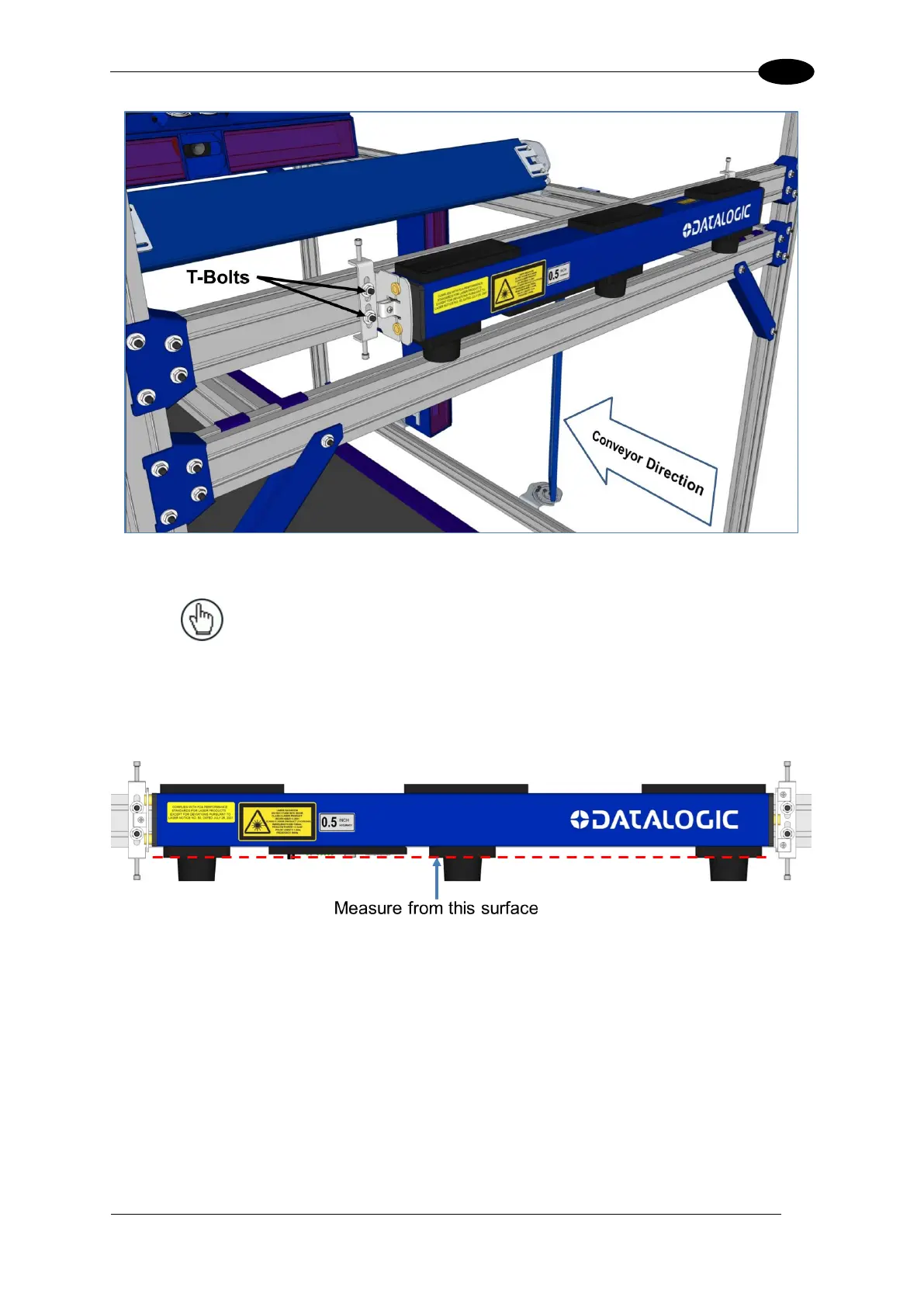

Figure 105: Attaching the RangeFinder to the Mounting Structure
NOTE: There must be 300 mm [12 in] between the
RangeFinder’s code words on the belt to the
beginning read area of the nearest camera.
4. Measure from Left and Right laser housing to the belt, making sure the RangeFinder
1924 mm [75.75 in] above the conveyor at those points.
Figure 106: Height Reference
5. Tie-wrap the power supply to the structure, making sure the power cable can be
connected.
