IMAGING FEATURES
11. Select the Right option button under Pattern Generator Display Enable, and make sure
the code word signal remains stable.

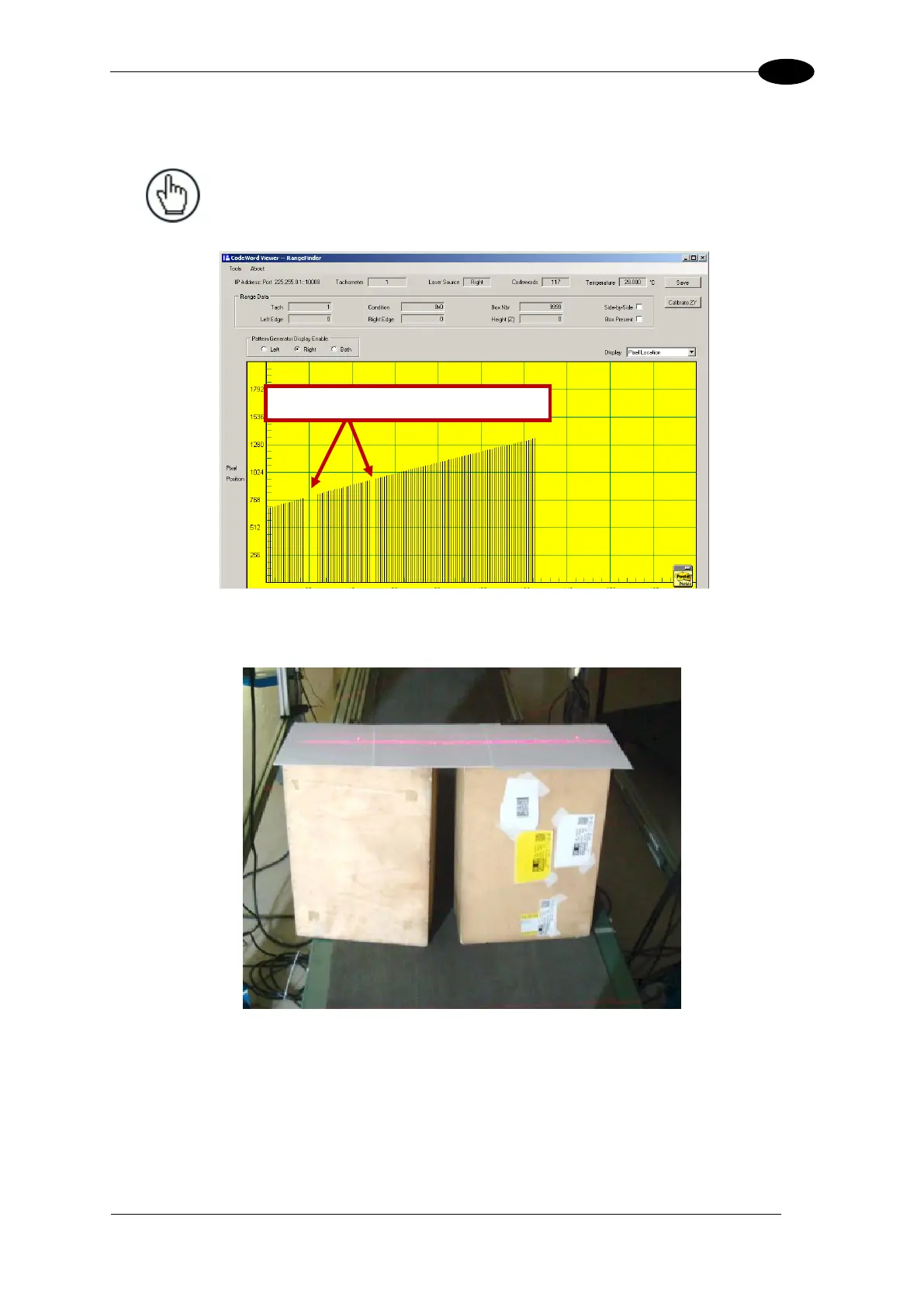

NOTE: If the gain is set too high or too low some of the code
words along the scan line will drop in and out as shown below.
Adjust the gain to eliminate the drop-outs.
12. Next, place the white paper on some tall system boxes in the near of the depth of field
(DOF) as shown below.
Figure 111: White paper positioned on tall boxes
13. Repeat steps 7-11 above.
Code words are dropping out
