Datalogic AV7000 Reference Manual

IMAGING FEATURES
235
5
LCC-75xx Kit with DS2 Light Array Electrical Connection and Setup
The DS2 AREAscan™ Light Array for the AV7000 is part of the LCC-75XX Light Curtain kit.
The LCC-75XX Light Curtain consists of:
• DS2 AREAscan™ Light Array (Receiver & Emitter)
• CVL-2403 Connection Cable
• Mounting Brackets
The CVL-2403 Connection Cable is provided to attach the DS2 AREAscan™ Light Array
emitter and receiver to the AV7000 and a power source.

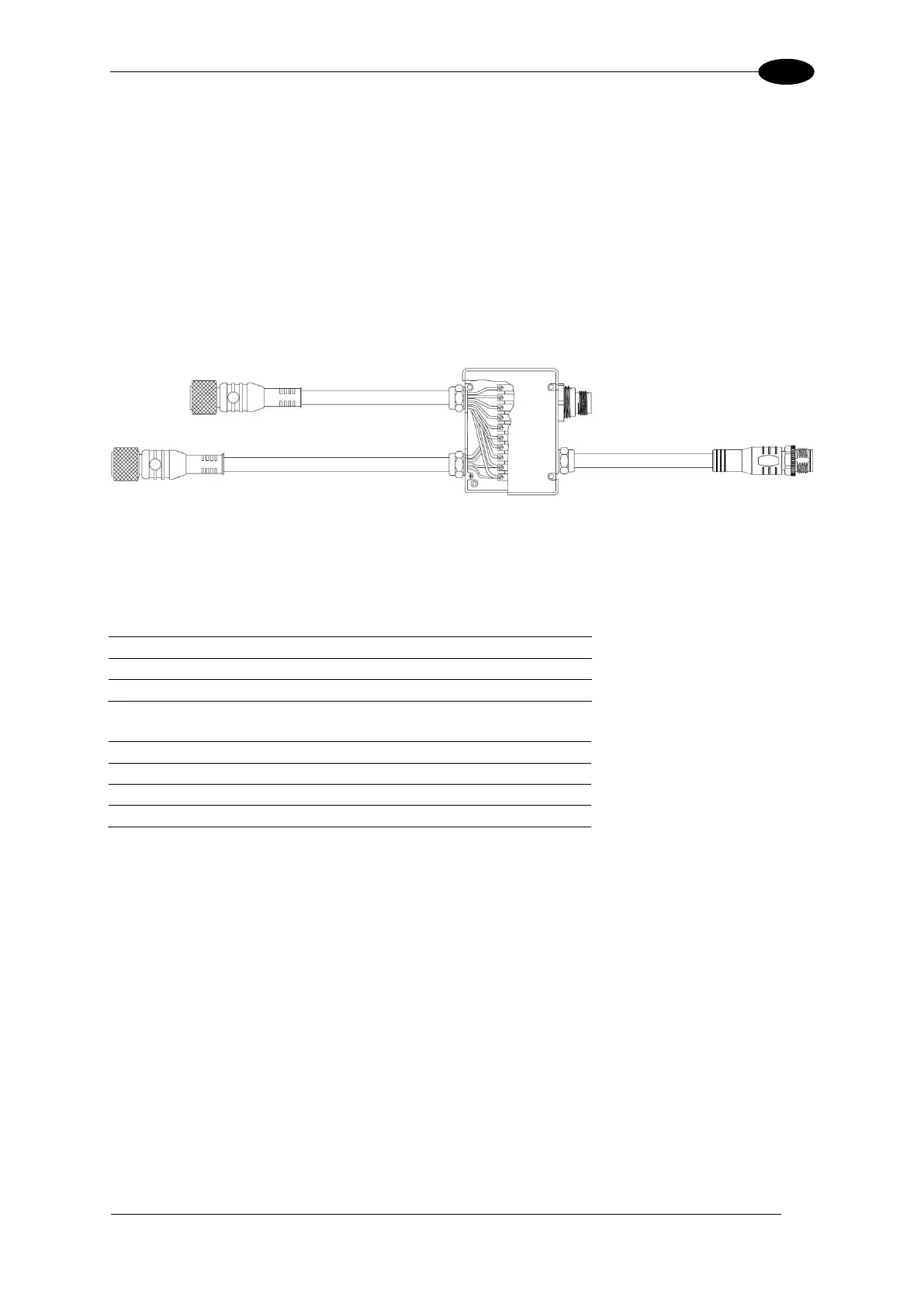

Figure 115: CVL-2403 Connection Cable
Power Options:
External Power Supplies:
PG-100-K01 POWER SUPPLY 60W KIT (EU)
93ACC0059
PG-100-K02 POWER SUPPLY 60W KIT (UK)
93ACC0060
PG-100-K03 POWER SUPPLY 60W KIT (US)
93ACC0058
Power from CBX box using cable 95ACC2110:
95ACC2110 Cable wire
CBX box terminal
Brown and White twisted together
Power Vdc
Blue and Black twisted together
Power GND
Grey
Earth
Verify the following:
Receiver DIP Switches:
 1 = OFF (down)
 2-8 = ON (up)
Emitter Trimmer is set fully clockwise (maximum gain)
To Receiver
To Emitter
To Power
To AV7000 Focus Serial Port
