13. Place the CH-3 Autofocus Test Chart at the near distance. Position the target so the
center X has only one leg (center of X) represented.
14. Zoom into the target area as described in the steps above.

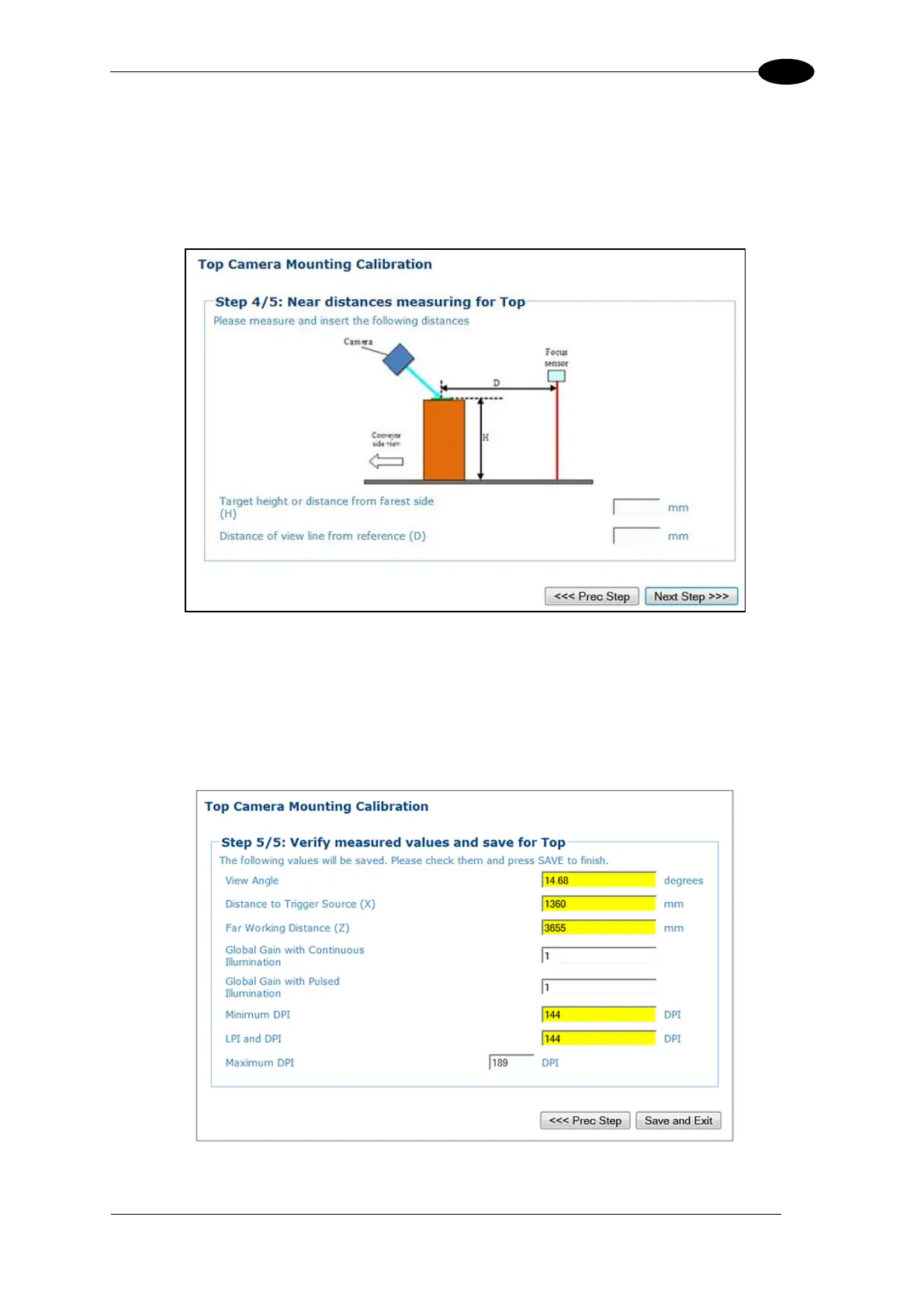

15. Click Next Step >>>. The Step 4/5 Mounting Calibration Window opens.
16. Enter the Target height (top mount AV7000) or distance from farthest side (side
mounted AV7000) (H).
17. Enter Distance of view line to reference (D). This is the distance from DM3610,
RangeFinder, or Light Curtain to the view line.
18. Select Next >>>. The Step 5/5 Mounting Calibration Window opens.
