3-62 Service Manual
Functions of main components
• Media tray assembly
• Pic arm assembly (feed)
• MPF
• Xerographics
• Transfer
• Fuser
• Drive
• Electrical components and rolls
Media tray assembly
It is necessary to adjust the media tray rear guide and media tray side guide of the media tray assembly to
match the media size.
Rear media guide
PC cartridge
Sensor (input)
PC drum
Standard bin full actuator
and sensor (standard bin full)
Diverter
Sensor
(duplex input)
Sensor (fuser output)
Sensor (narrow media)
Pick arm
assembly
Sensor (option
pass through)

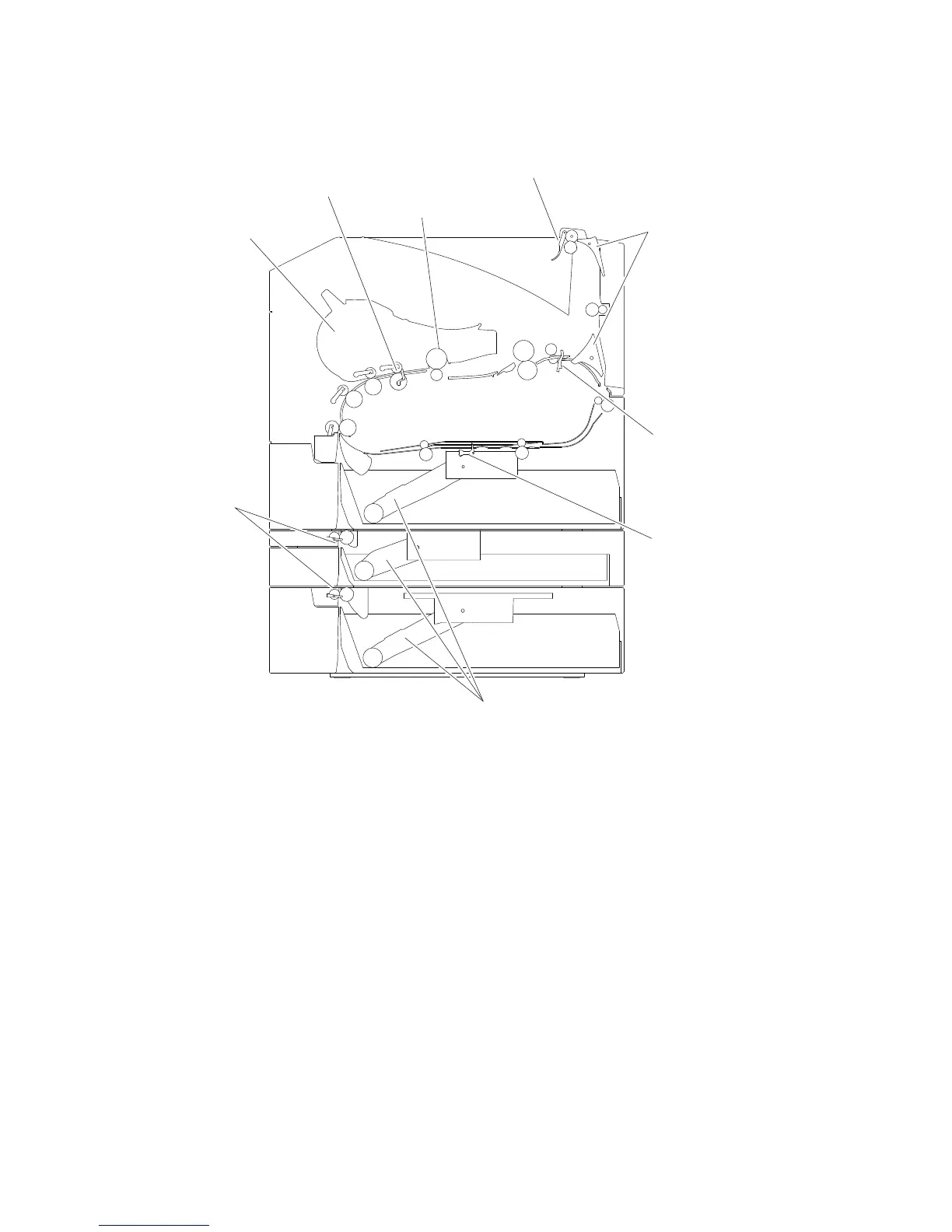

Models 5350dn and 5530dn paper path rolls and sensors
