Dell 5230dn Mono Laser Printer - Cover Assembly, Rear Lower Removal (5230 N;Dn); Cover Assembly, Rear Lower (5350 Dn and 5530 Dn); Charge Roll Assembly Removal

4-12 Service Manual

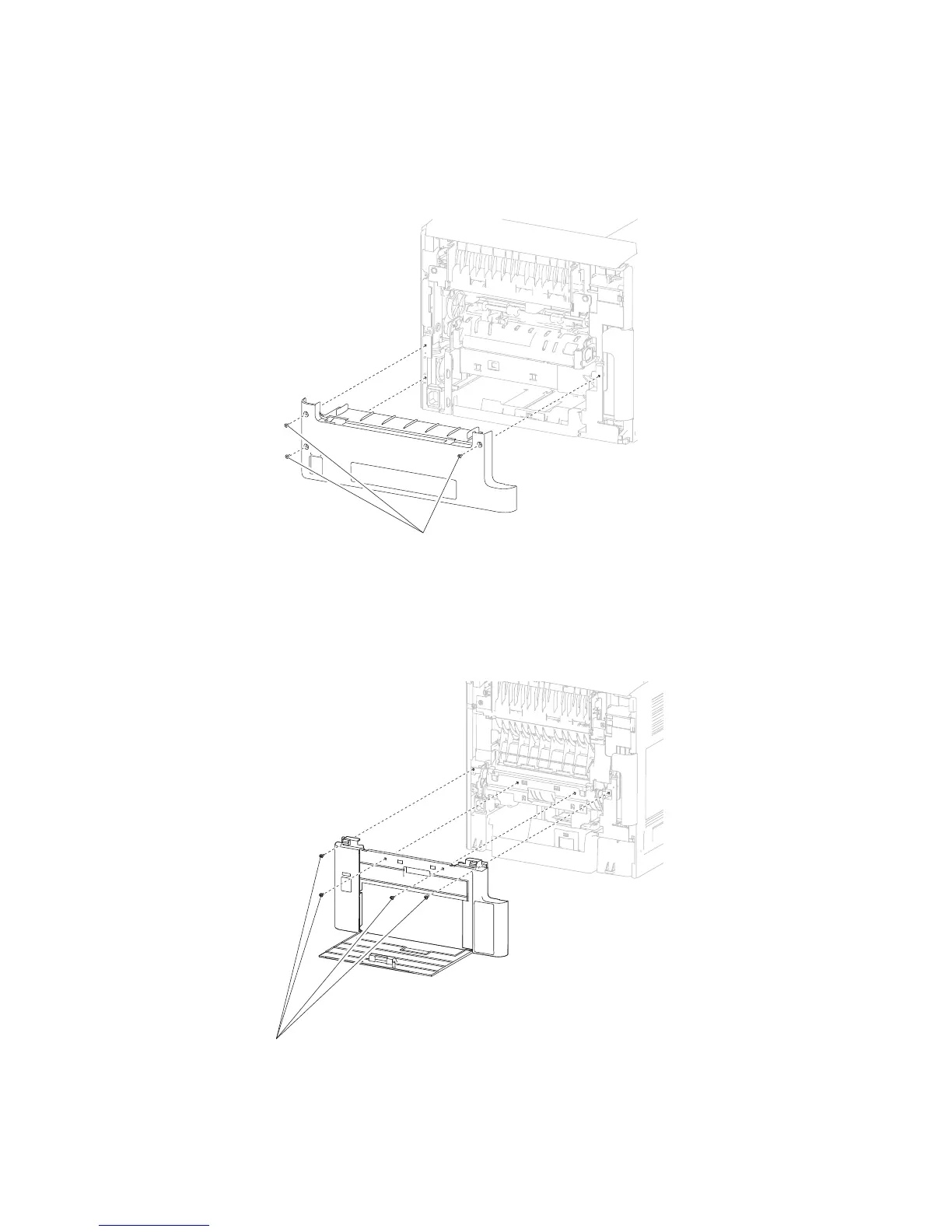

1. Remove the fuser access door assembly. Go to “HVPS card assembly removal” on page 4-24.
2. Open the rear lower door.
3. Remove the three screws (A) securing the cover assembly, rear lower to the machine.
4. Remove the cover assembly, rear lower.
1. Open the rear lower door.
2. Remove the four screws (A) securing the cover assembly, rear lower to the machine.
3. Remove the cover assembly, rear lower.
Charge roll assembly removal
A
A
Cover assembly, rear lower (5350dn and 5530dn)
Cover assembly, rear lower removal (5230n/dn)
