Repair Information 4-109

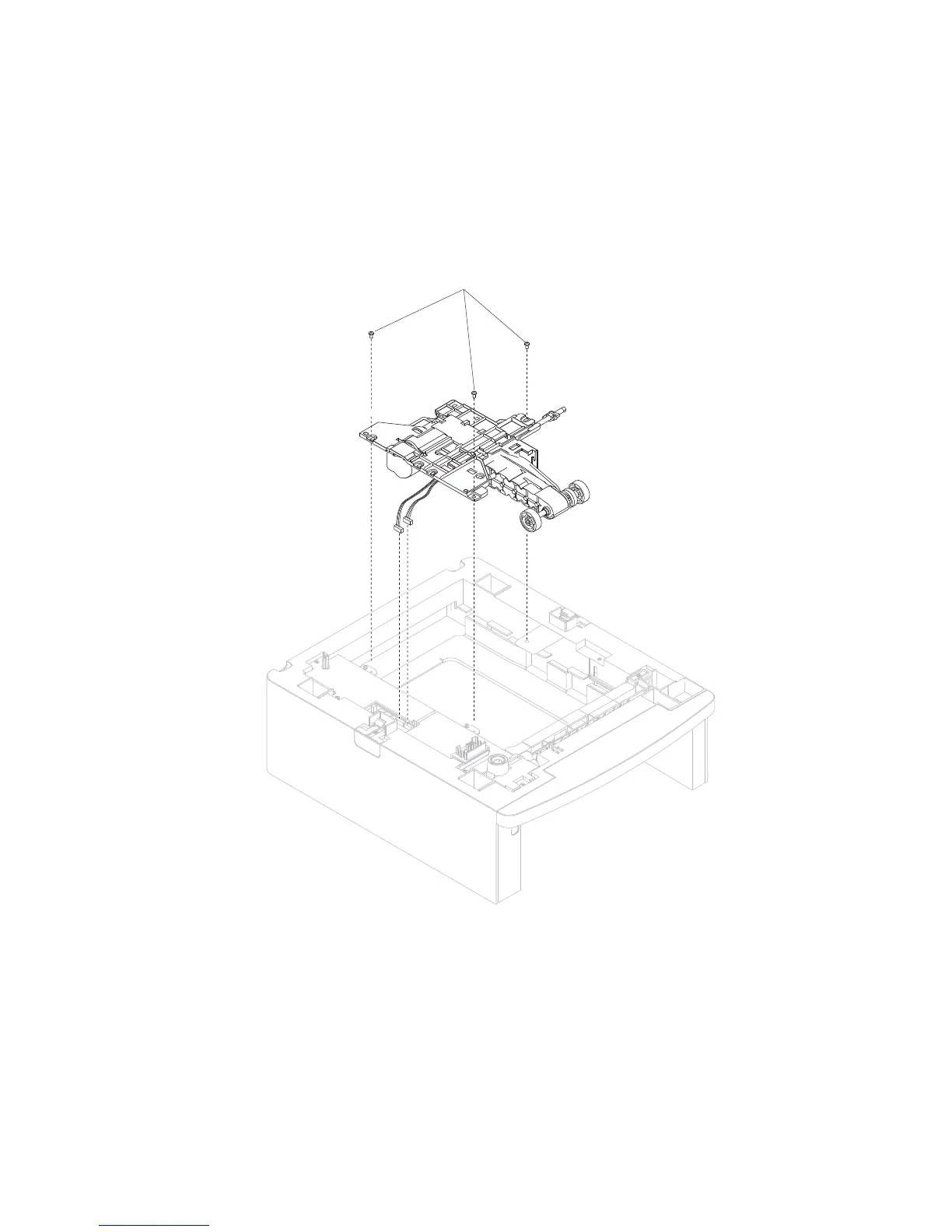

550-sheet pick arm bracket assembly removal
2. Remove the two 550-sheet pick arm bracket assembly cable connectors (A) from the 550-sheet controller
card assembly.
3. Detach the 550-sheet bellcrank recoil spring (B) from the drawer.
4. Remove the four screws (C) securing the 550-sheet pick arm bracket assembly to the drawer.
5. Remove the 550-sheet pick arm bracket assembly.
and 5530dn)” on page 4-159.
1. Remove the 550-sheet media tray assembly. Go to “Media out actuator removal (models 5350dn
