4-116 Service Manual

High capacity input tray (HCIT) media tray assembly removal

1. Open the HCIT media tray assembly until it reaches a stop.

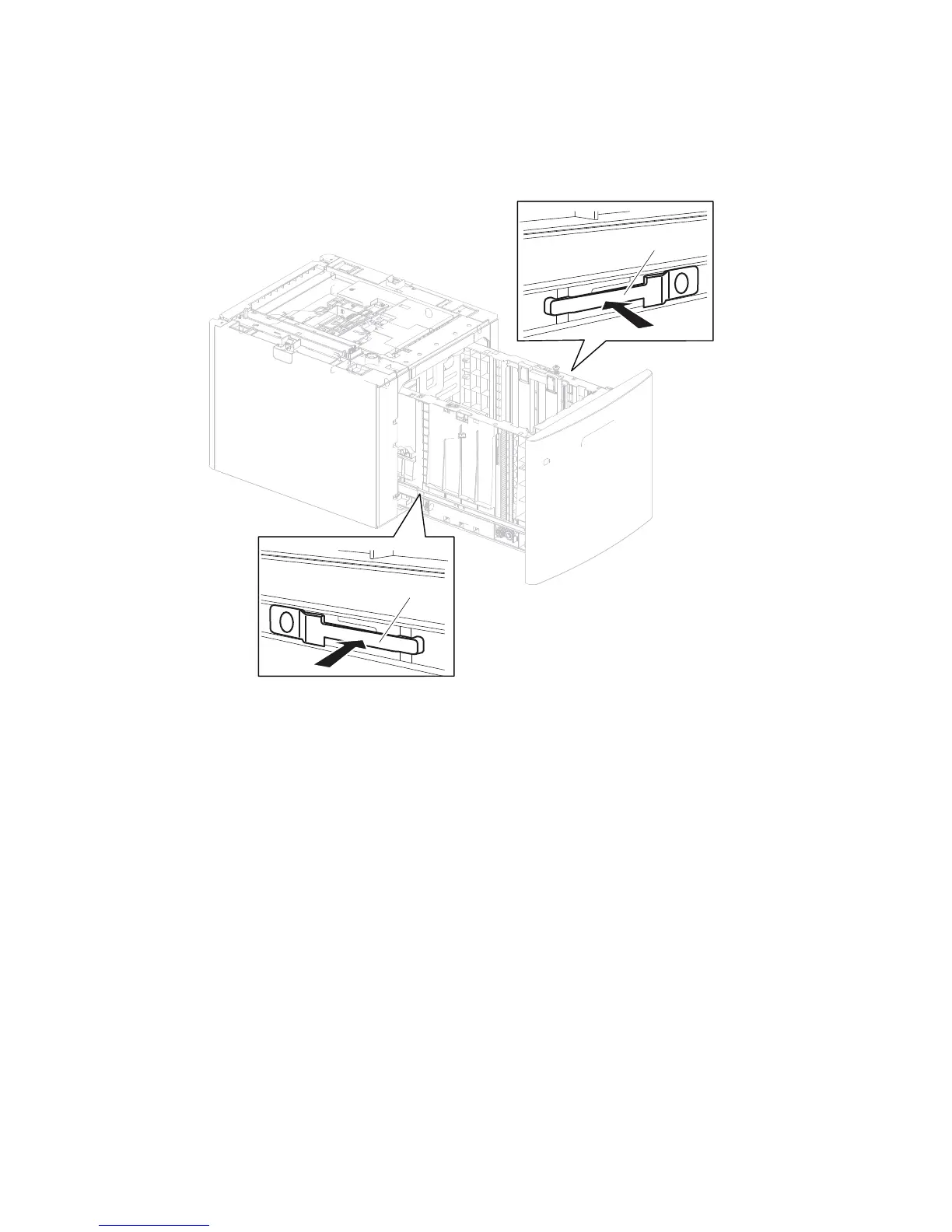

2. Press the latches (A) on the left and right sides of the HCIT tray slides.

3. Slide the HCIT media tray assembly out of the drawer.

A

A
