Dell 5230dn Mono Laser Printer - Sheet Controller Card Assembly Removal

Repair Information 4-107

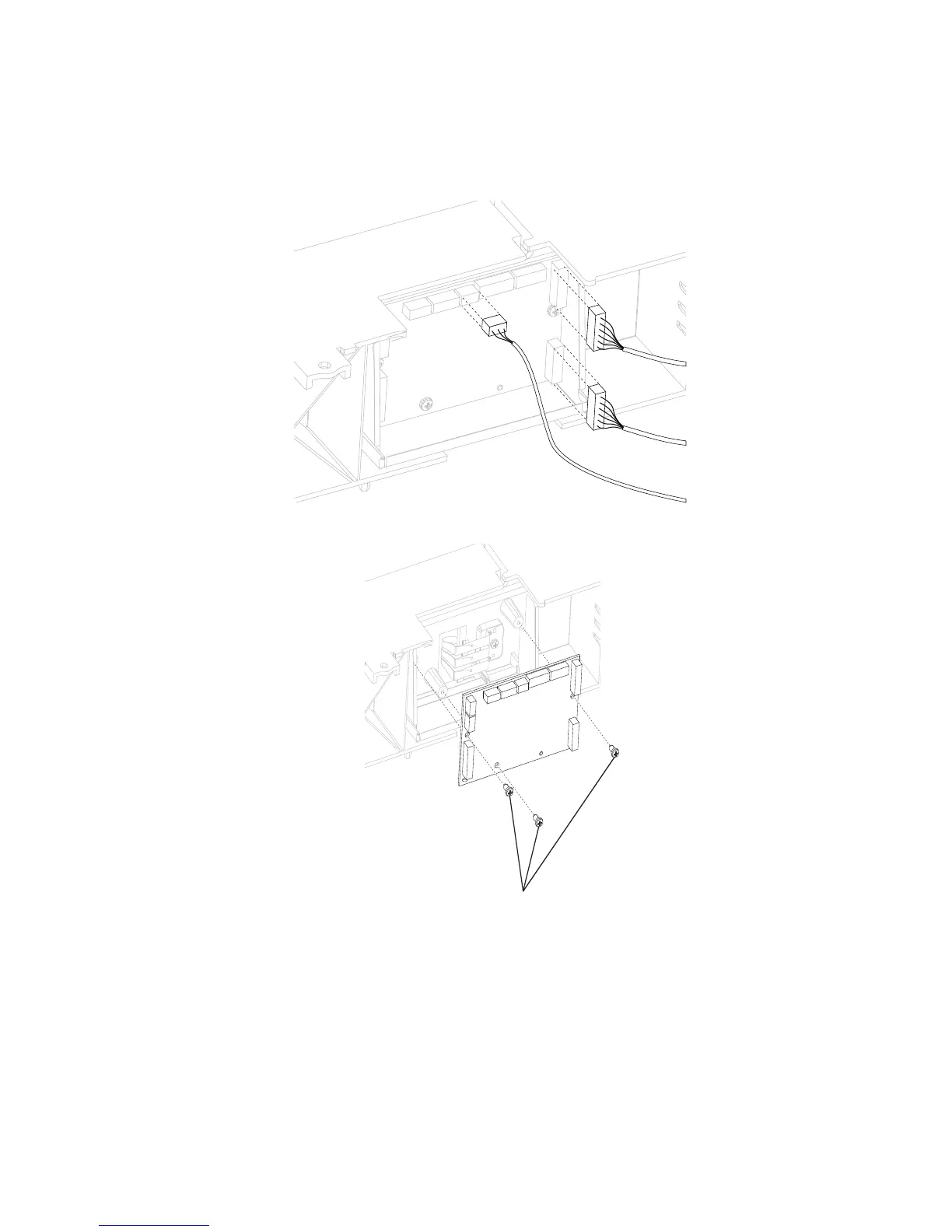

250-sheet controller card assembly removal
1. Remove the 250-sheet frame assembly. Go to “250-sheet frame assembly removal” on page 4-105.
2. Disconnect the three connectors from the 250-sheet controller card assembly.
3. Remove the three screws (B) securing the 250-sheet controller card assembly to the 250-sheet frame.
4. Remove the 250-sheet controller card assembly.
A
