3-74 Service Manual

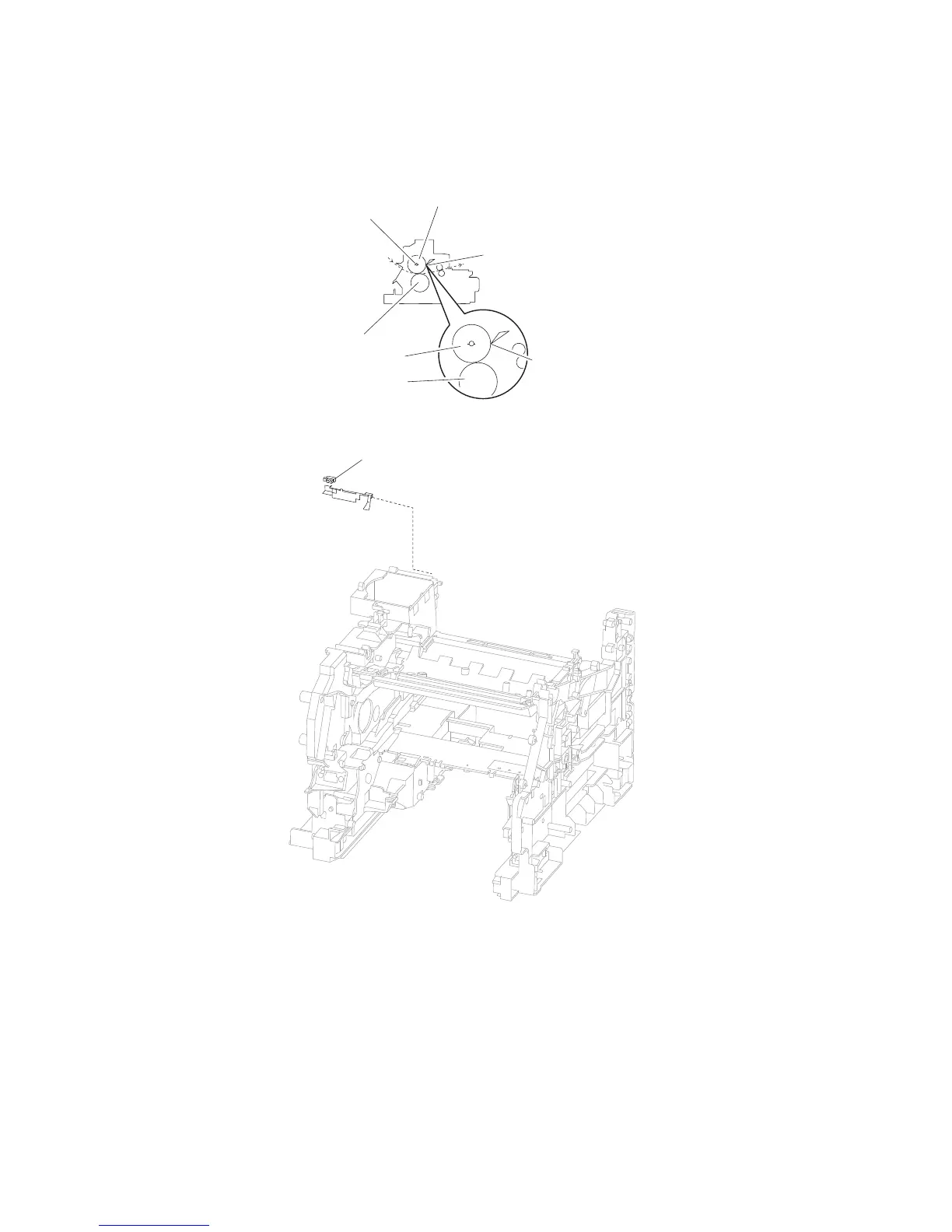

Type 2 fuser unit assembly
In the type 2 fuser unit assembly, the detacs, which are used to prevent the media from sticking to the hot roll,
do make full contact with the hot roller. The type 2 fuser unit assembly has a life of 150K.
Exit
The standard media exit ejects printed media from the printer to the standard bin .
Sensor (standard bin full)
The sensor (standard bin full) detects whether the standard bin is full by moving the actuator up and down.
Hot roll
Pressure roll
Fuser lamp
Full contact detac
Full contact detac
Pressure roll
Hot roll
Sensor (Standard bin exit)
