Dell 5230dn Mono Laser Printer - Bin Mailbox Media bin Full Actuator Removal

Dell 5230dn Mono Laser Printer

586 pages

Save Page as PDF

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

4-90 Service Manual

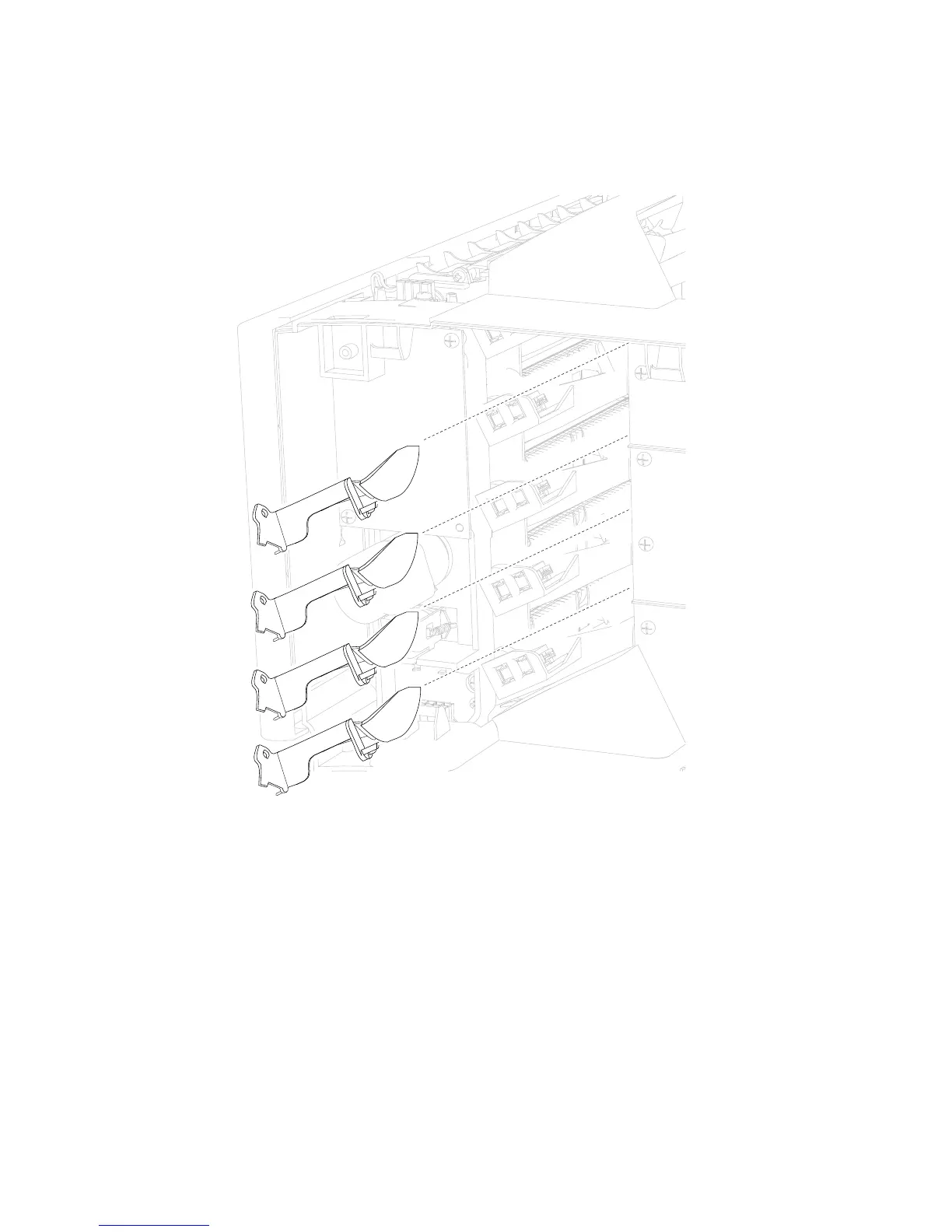

5-bin mailbox media bin full actuator removal

1. Remove the 5-bin mailbox left inner cover. Go to “5-bin mailbox left inner cover removal” on page 4-86.

2. Grasp the media bin full actuator and pull the pins from the bosses.
