4-180 Service Manual

SFP stapler assembly tamper drive belt removal

1. Remove the tamper recoil spring. Go to “SFP stapler assembly tamper drive belt removal” on

page 4-180.

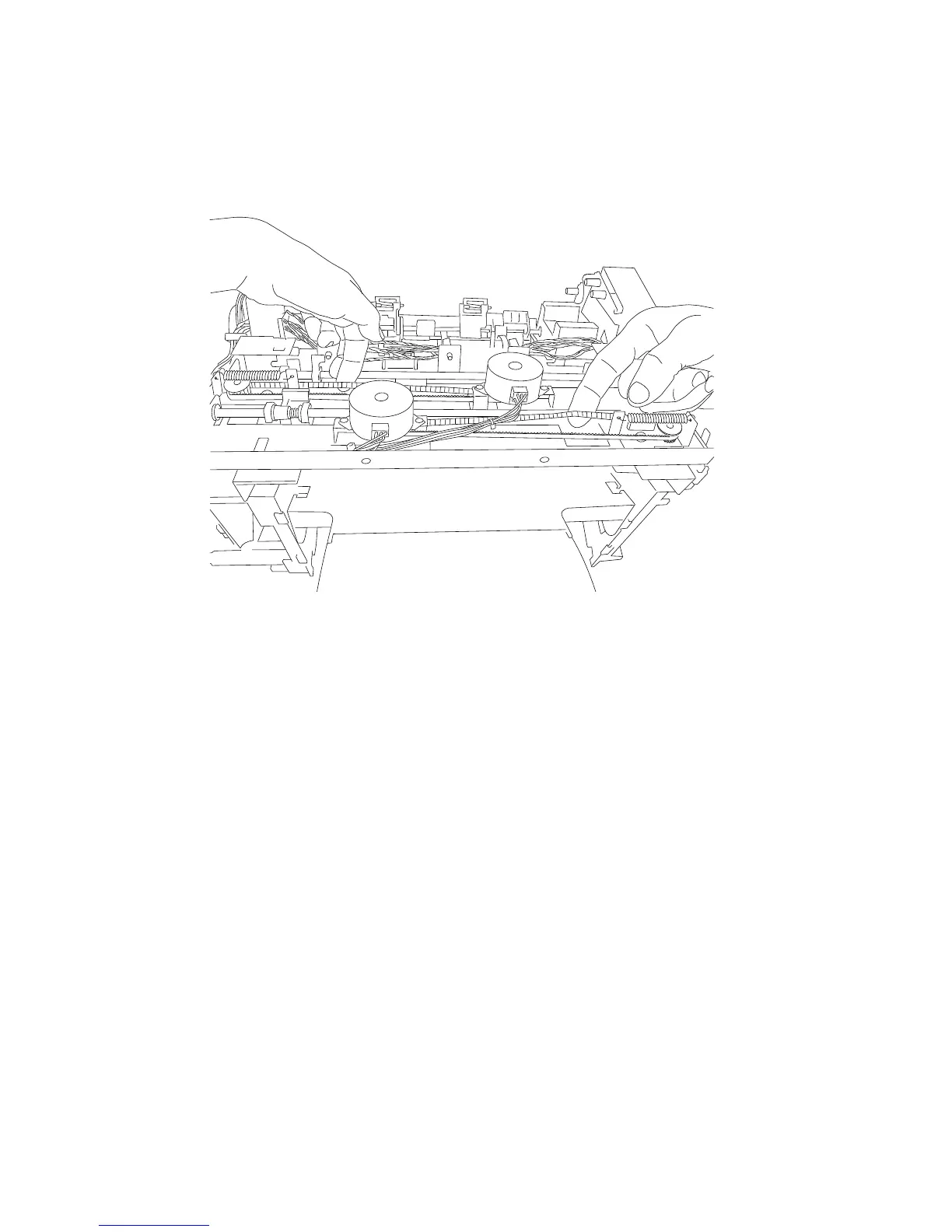

2. Pull the belt out the tamper belt holder and remove the belt from the pulley.
