Dell 5230dn Mono Laser Printer - SFP Stapler Assembly Handle Cover Removal

4-176 Service Manual

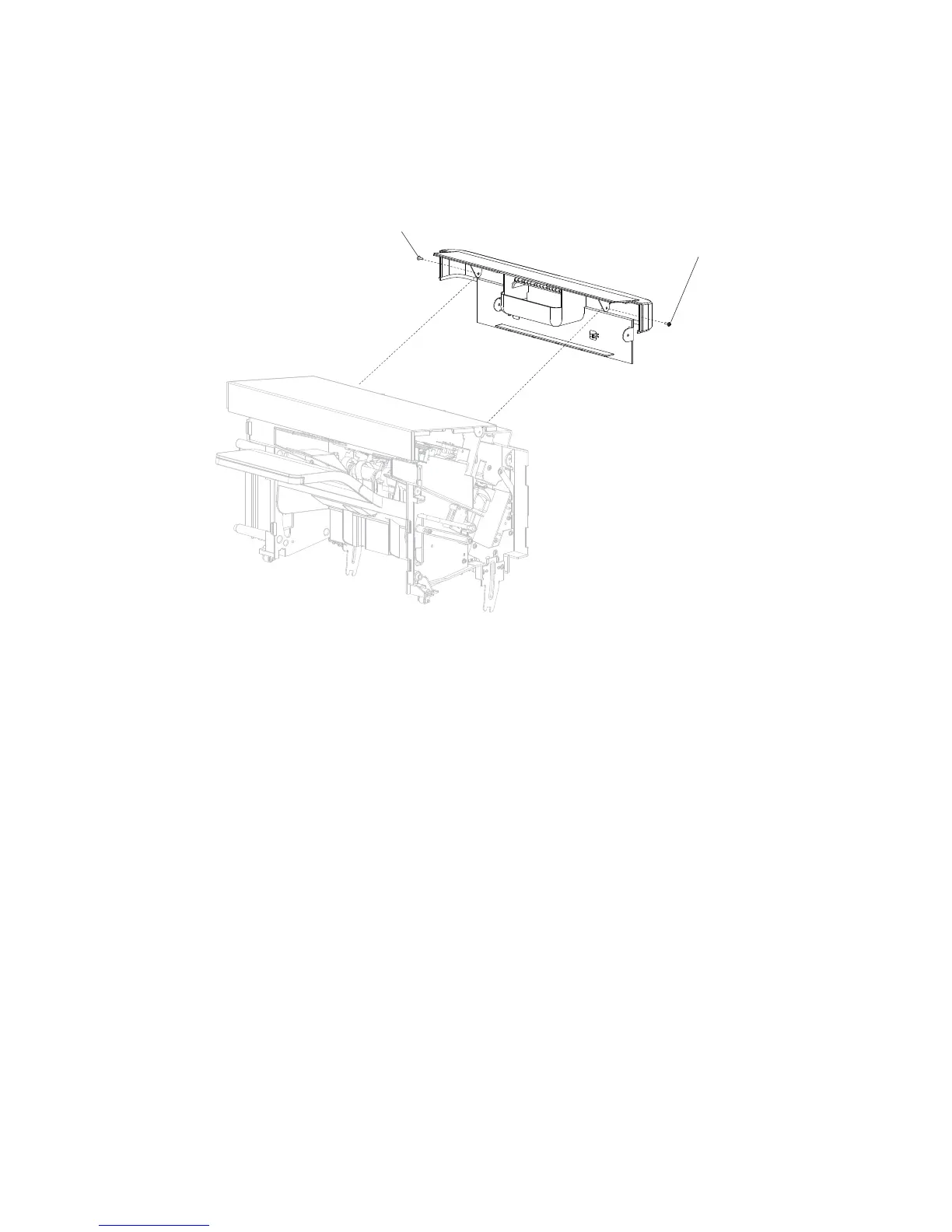

SFP stapler assembly handle cover removal
1. Remove the left and right cover. Go to “SFP stapler assembly left cover removal” on page 4-174 and
“SFP stapler assembly right cover removal” on page 4-173.
2. Remove two screws (A) from each side of the SFP stapler assembly.
3. Lift up and to the rear to remove the cover.
A
A
