Dell 5230dn Mono Laser Printer - Upper Interface Cable Assembly Removal

Repair Information 4-199

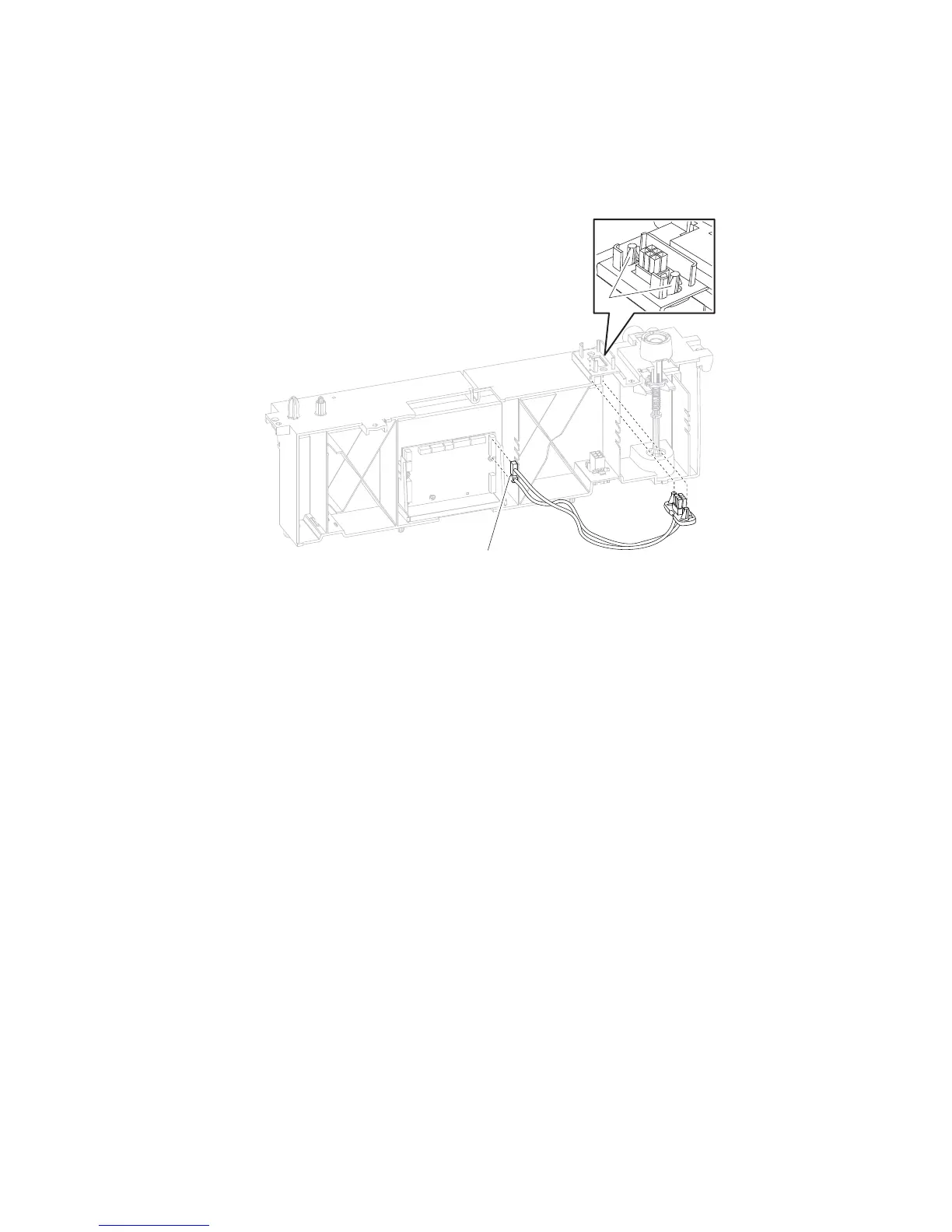

Upper interface cable assembly removal
1. Remove the 550-sheet frame assembly. Go to “Media size actuator removal” on page 4-160.
2. Disconnect the upper interface cable connector (A) from the 550-sheet controller card.
3. Release the two hooks (B) securing the options auto connect to the 550-sheet frame.
4. Remove the upper interface cable assembly.
B
A
