Dell 5230dn Mono Laser Printer - Sheet Media Tray Assembly Removal; Sheet Option Tray Assembly

4-108 Service Manual

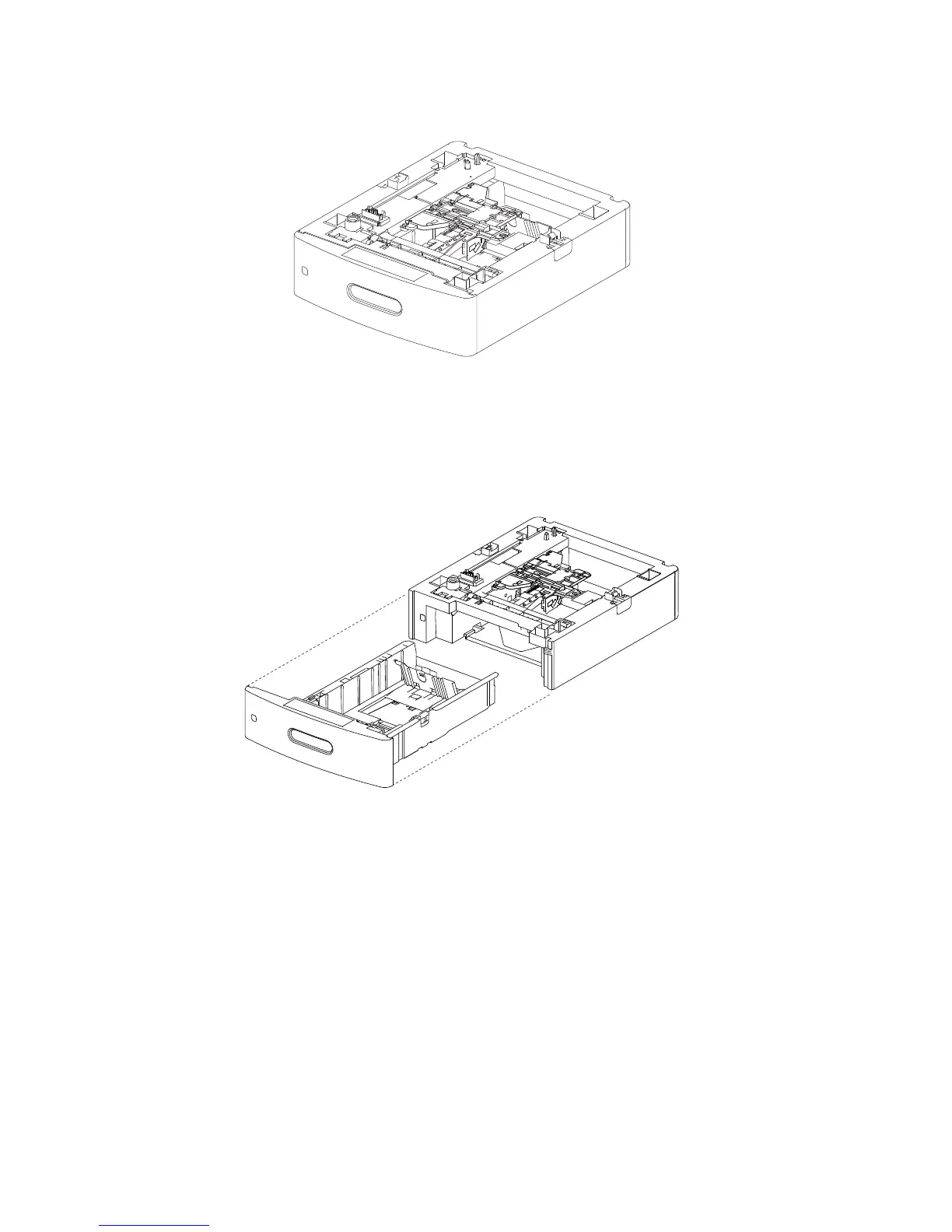

550-sheet option tray assembly
Note: Carefully remove the base machine from the input option tray assembly before proceeding.
550-sheet media tray assembly removal
Note: This removal procedure can be applied to 550-sheet option drawer assembly.
Remove the 550-sheet media tray assembly from the 550-sheet option drawer assembly.
