Repair Information 4-97
5-bin mailbox media bin extension assembly removal
1. Fully extend the media bin extension.
2. Release the two tabs on the underside of the extension and pull out the rest of the way.
5-bin mailbox deflector gate solenoid removal
1. Remove the 5-bin mailbox right outer cover. Go to “5-bin mailbox right outer cover removal” on
page 4-87.
2. Remove the 5-bin mailbox left outer cover. Go to “5-bin mailbox left outer cover removal” on page 4-86.

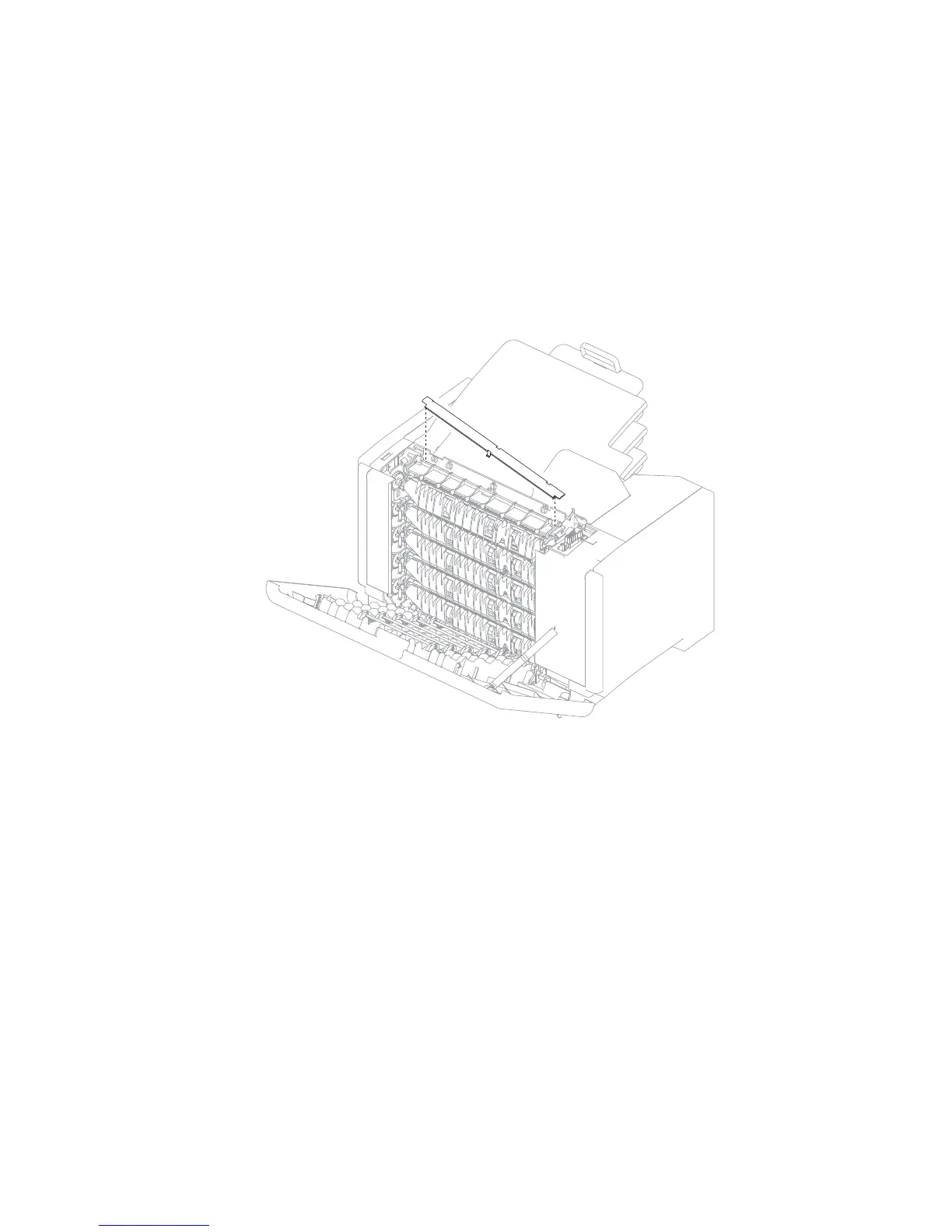

3. Remove the top cable cover panel.
To Next Page
