Dell 5230dn Mono Laser Printer - Operator Panel Hinge Assembly, Right Removal (5230 N;Dn, 5350 Dn, and 5530 Dn)

4-46 Service Manual

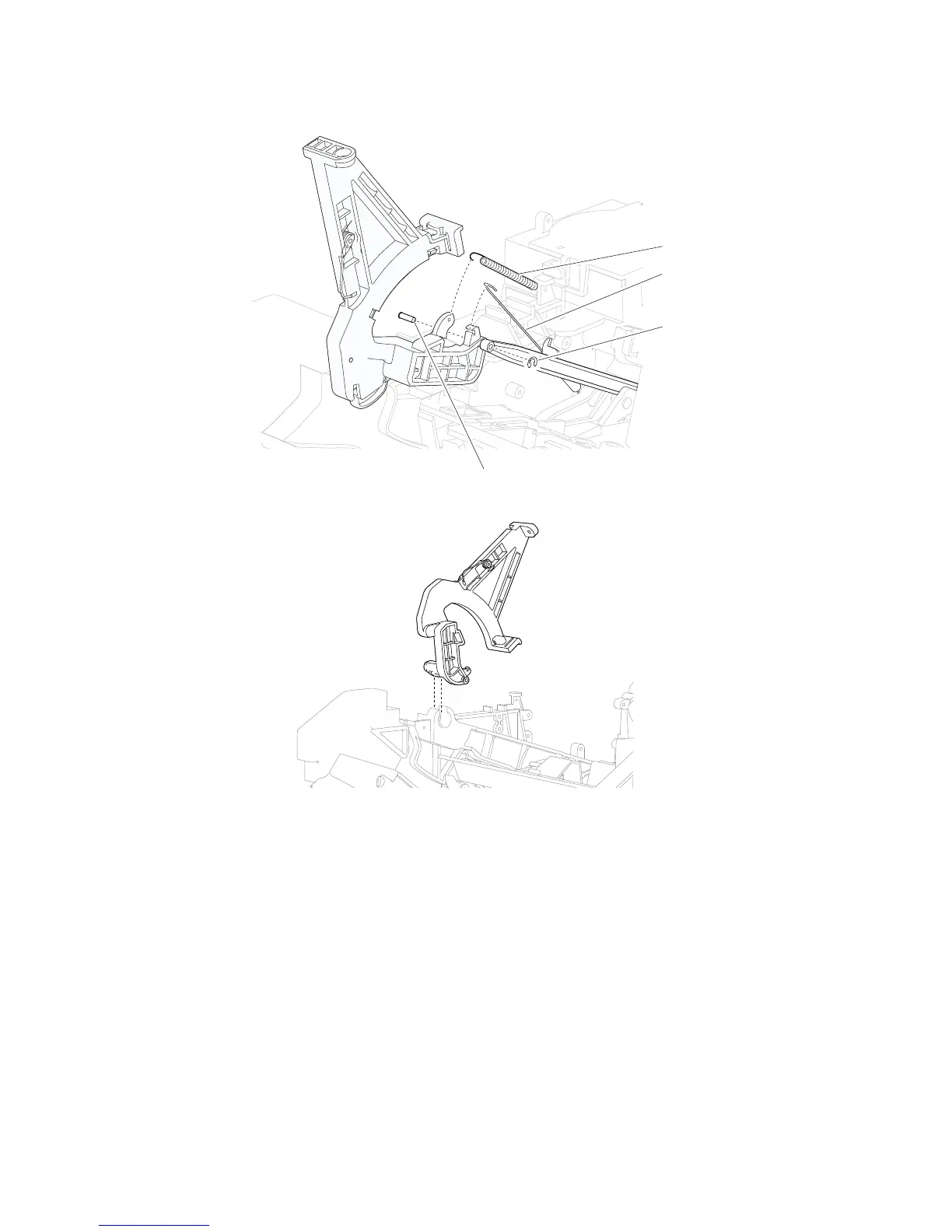

9. Remove the pin (G) from the operator panel hinge assembly, left.
10. Remove the operator panel hinge assembly, left.
2. Detach the spring (A) from the operator panel hinge assembly, right.
D
E
F
G
Operator panel hinge assembly, right removal (5230n/dn, 5350dn, and 5530dn)
5350dn, and 5530dn)” on page 4-43.
1. Remove the operator panel door assembly. Go to “Operator panel door assembly removal (5230n/dn,
