Repair Information 4-171

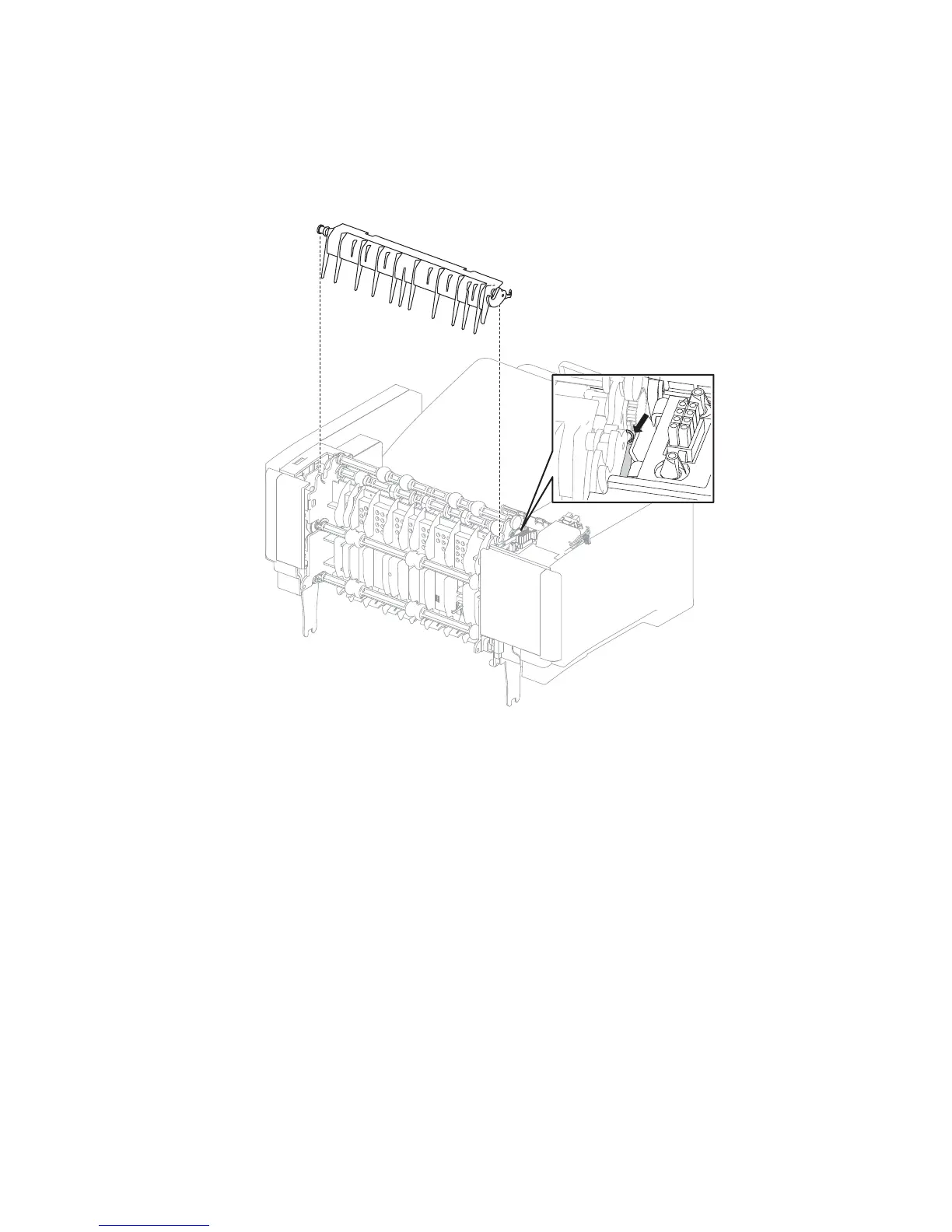

Output expander deflector gate removal

1. Use a spring hook to disconnect the upper end of the deflector gate spring.

2. Temporarily hook the upper end of the deflector gate spring to the left frame.

3. Pull the deflector gate out of its hinges and remove.
