4-188 Service Manual
SFP stapler assembly sensor (tamper HP left and right) removal
1. Remove the SFP stapler assembly top cover. Go to “SFP stapler assembly top cover removal” on
page 4-175.
2. Disconnect the harness to the SFP stapler assembly sensor (tamper HP left and right).

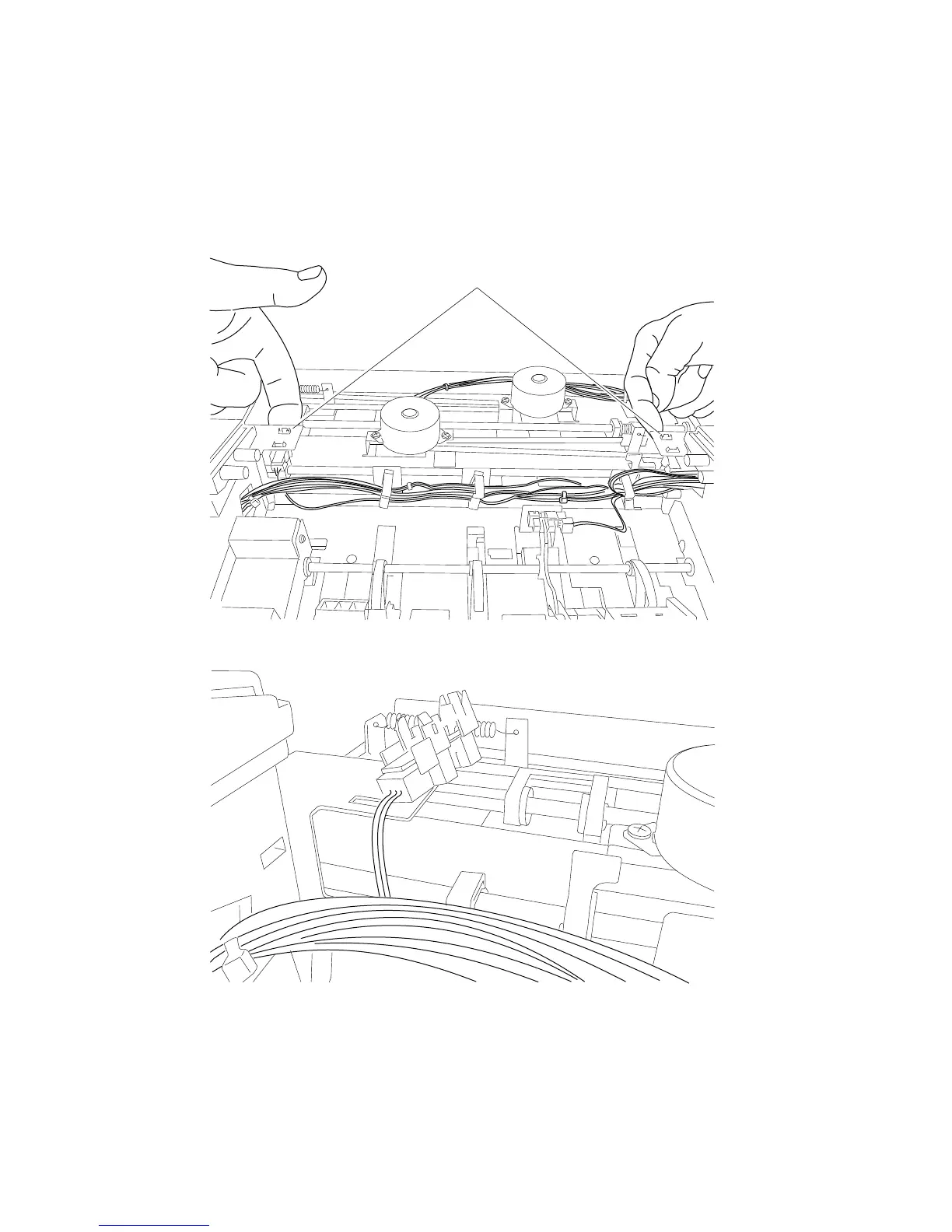

3. Using your fingers, pinch the tabs (A) securing the staple finisher sensor (tamper HP left and right) and
remove.
A
