4-148 Service Manual

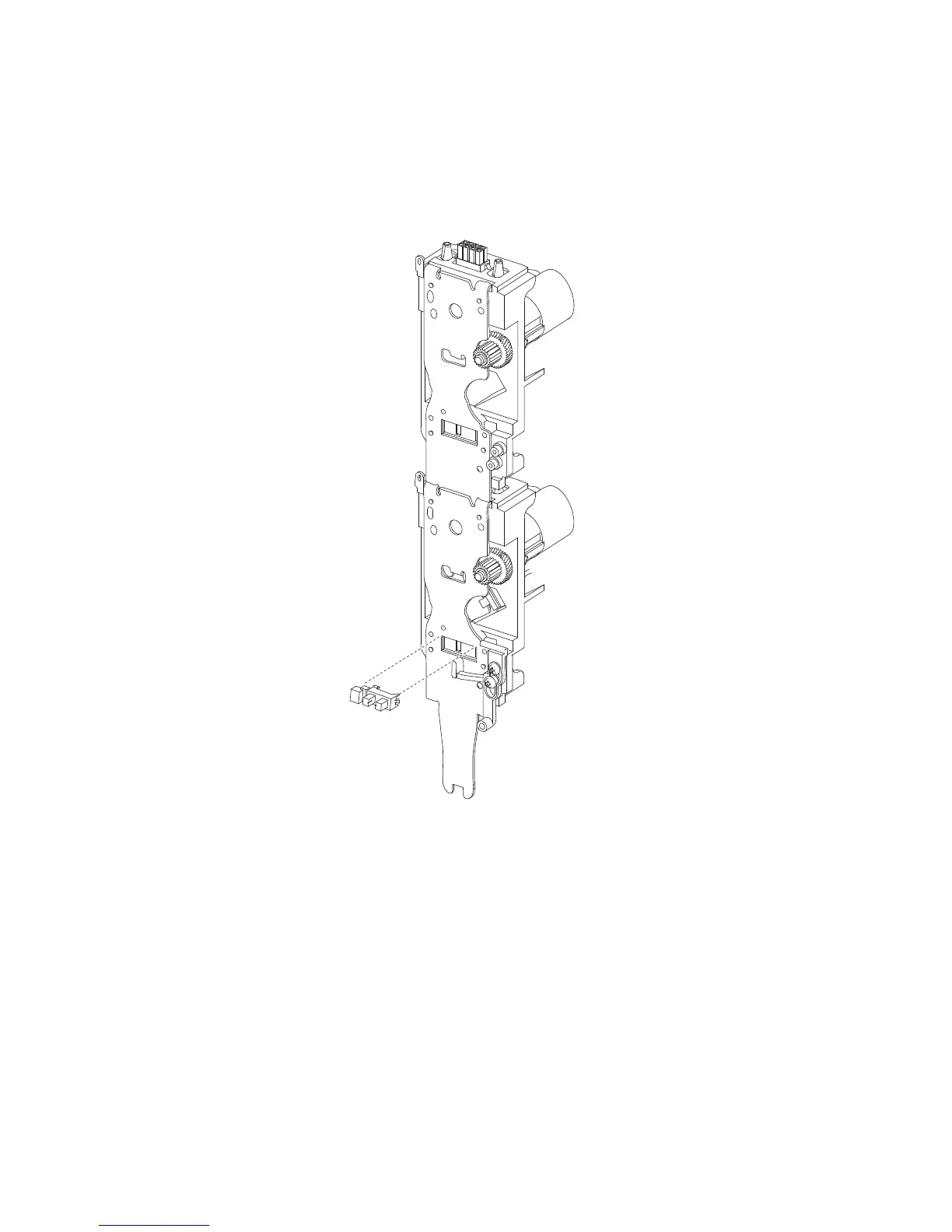

High capacity stacker sensor (deflector gate HP) removal

1. Remove the high capacity stacker left mounting bracket. Go to “High capacity stacker left mounting

bracket removal” on page 4-147.

2. Remove the harness from the sensor.

3. Unclip the sensor tabs and remove.
