1. Remove the fuser access door. Go to “HVPS card assembly removal” on page 4-24.
3. Remove the three screws (A) securing the duplex drive motor assembly to the machine.
Note: When removing the duplex drive motor assembly, the upper duplex drive belt (B) will become detached.
4. Remove the band (C) from the duplex drive motor assembly.
5. Remove the cover from the duplex drive motor assembly.
6. Disconnect the connection (D) to the duplex drive motor assembly.

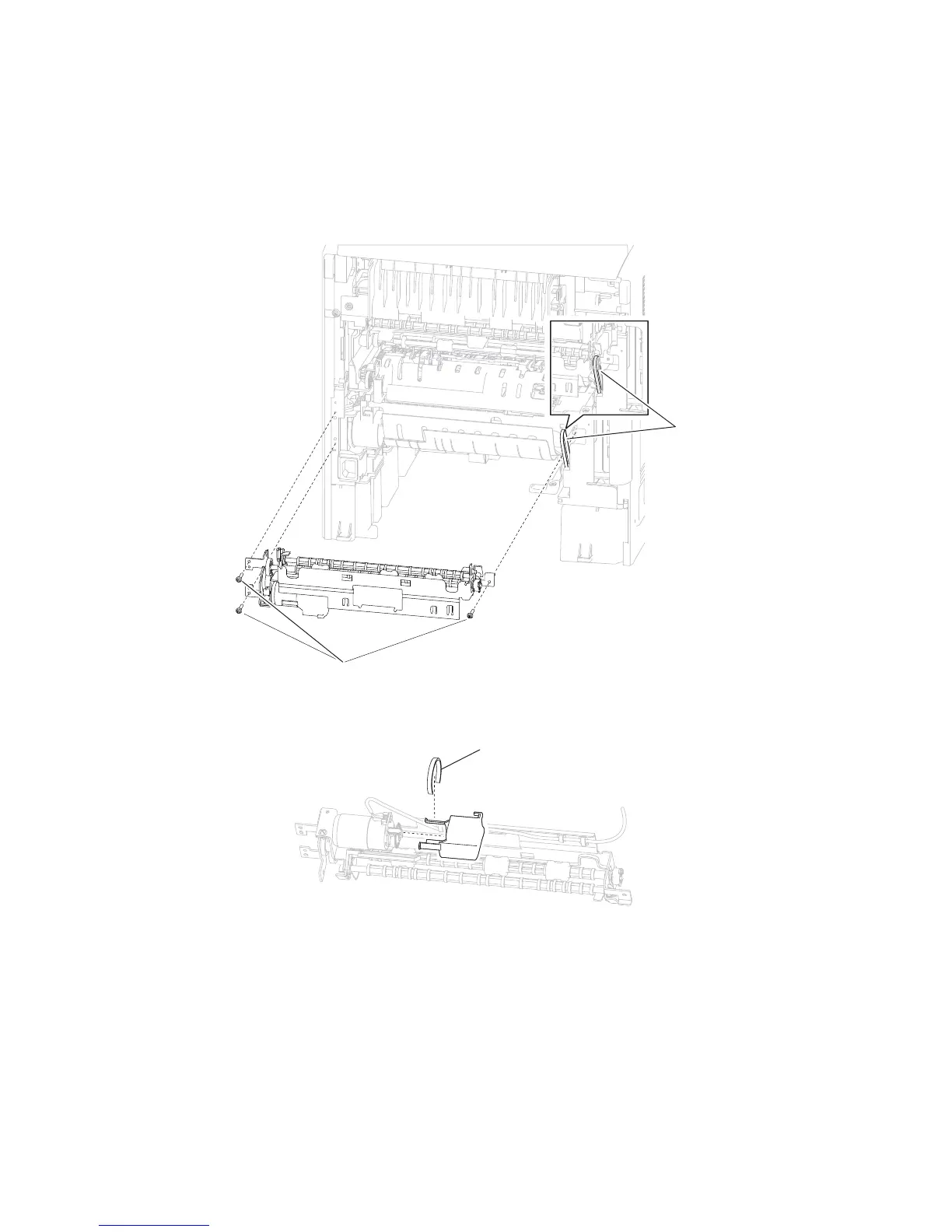

Duplex drive motor assembly removal (5350dn, 5530dn, and T656)
2. Remove the cover assembly, rear lower. Go to “Cover assembly, rear lower (5350dn and 5530dn)” on
page 4-12.
