4-186 Service Manual
SFP stapler assembly sensor (paddle HP) removal
1. Remove the left cover. Go to “SFP stapler assembly left cover removal” on page 4-174.
2. Disconnect the harness to the sensor (paddle home position).

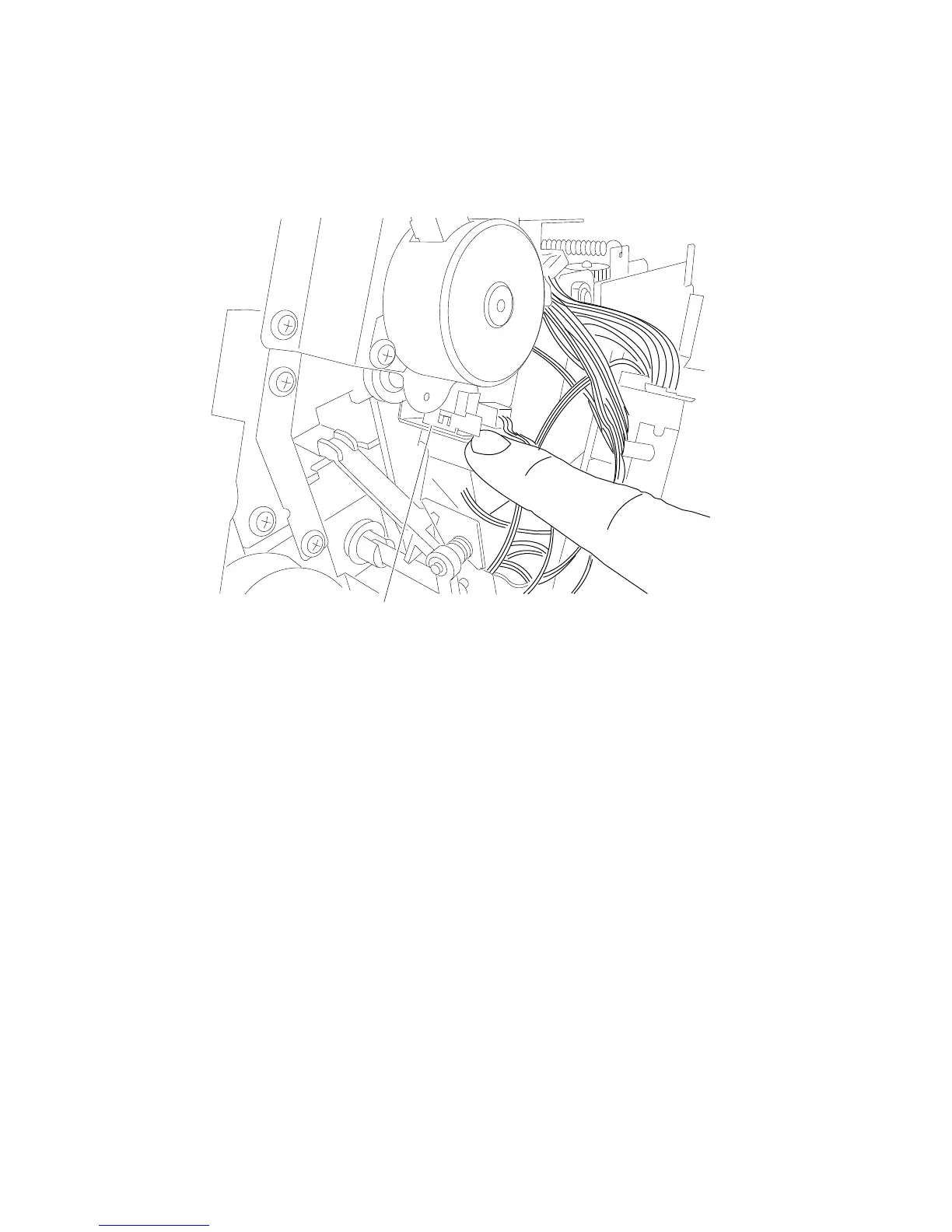

3. Using your fingers, pinch tab (A) securing the sensor (paddle home position) and remove.
A
