Dell 5230dn Mono Laser Printer - Transfer Deflector Removal; Tray Roller Catch Assembly Removal

Repair Information 4-83
Transfer deflector removal
1. Remove the transfer roll assembly. Go to “Transfer roll assembly removal” on page 4-80.
2. Gently unsnap the transfer deflector from the machine.
3. Remove the transfer deflector.

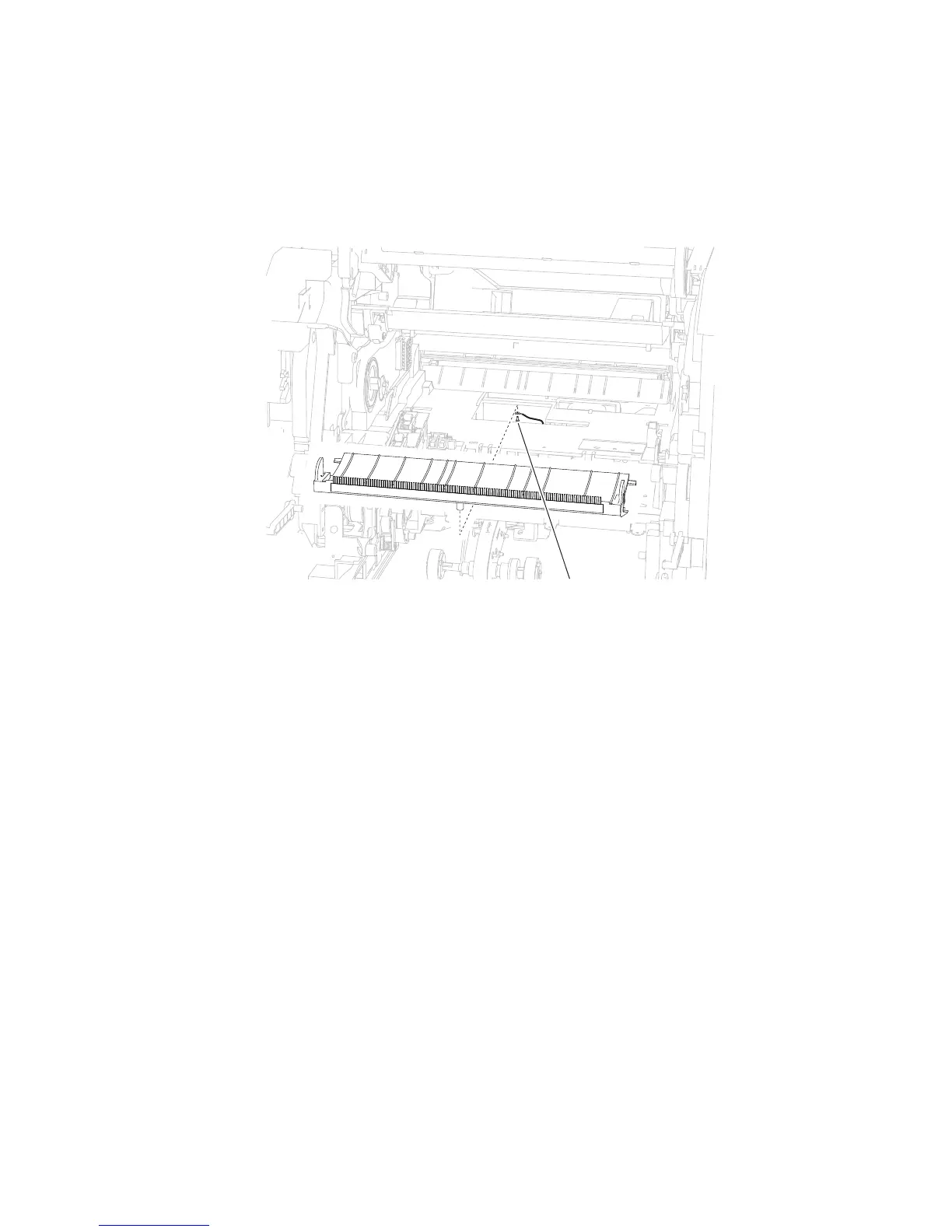

4. Remove the screw (A) securing the ground wire to the transfer deflector.
5. Remove the ground wire.
Replacement Warning: When replacing the transfer deflector, ensure that the ground wire is properly
replaced.
Tray roller catch assembly removal
1. Remove the media tray.
2. Remove the HVPS card assembly. Go to “HVPS card assembly removal” on page 4-24.
A
