Media transport path

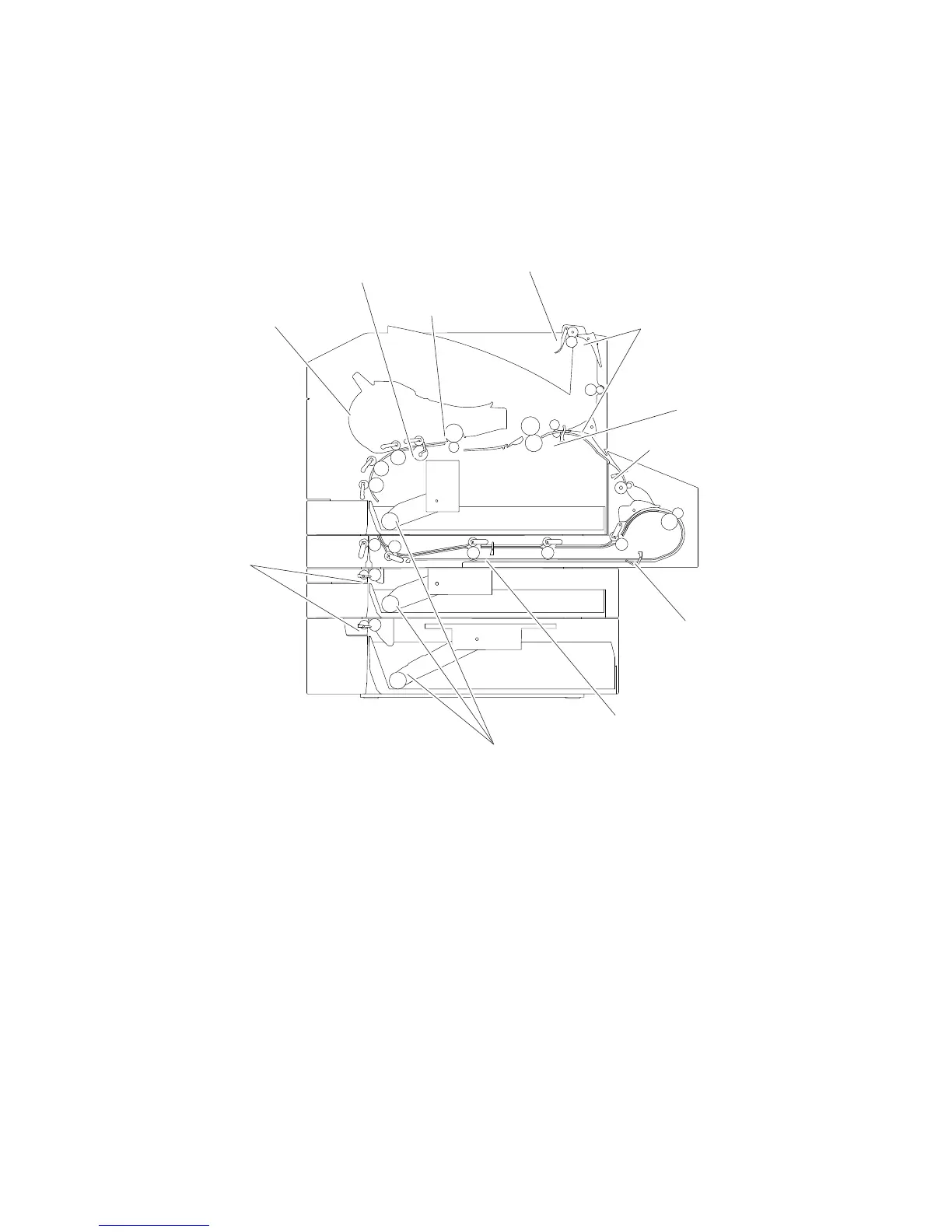

The following is a cross section of the printer and the tandem tray module, showing the main components
directly associated with the media path and transport.
PC cartridge
Sensor (input)
PC drum
Standard bin full actuator
and sensor (standard bin full)
Diverter
Sensor (duplex input)
Sensor (fuser output)
Sensor (narrow media)
Sensor (duplex
double feed)
Sensor (duplex exit)
Pick arm
assembly
Sensor (option
pass through)
Model 5230 paper path, rolls, and sensors
