Dell 5230dn Mono Laser Printer - High Capacity Stacker Left Cover Removal

4-136 Service Manual
High capacity stacker left cover removal
1. Remove the high capacity stacker rear door assembly. Go to “High capacity stacker rear door assembly
removal” on page 4-134.

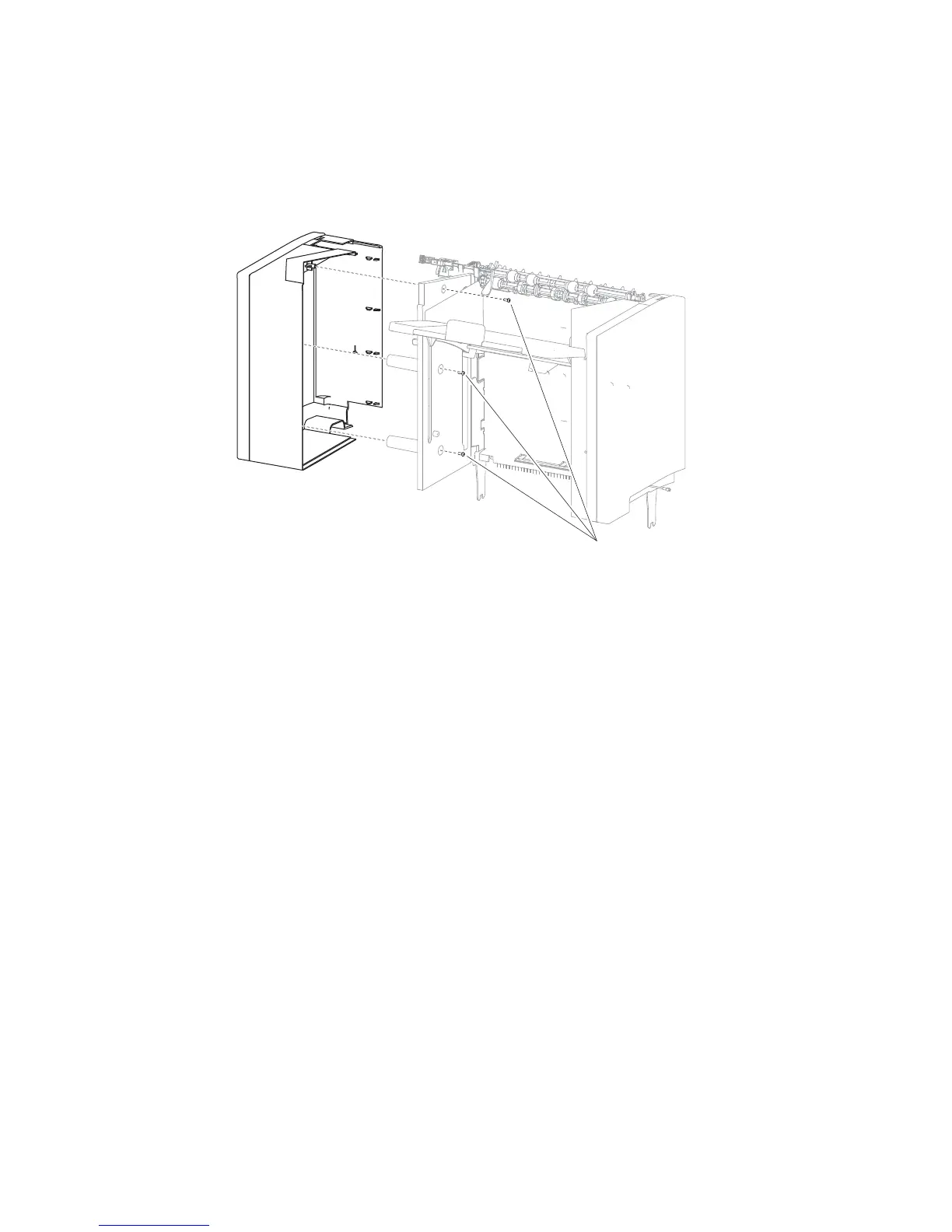

2. Using a #1 phillips screwdriver, remove the three screws (A) securing the left cover to the high capacity
stacker assembly.
3. Remove the left cover.
A
