4-110 Service Manual

550-sheet bellcrank recoil spring removal

1. Remove the 550-sheet pick arm bracket assembly. Go to “550-sheet pick arm bracket assembly

removal” on page 4-109.

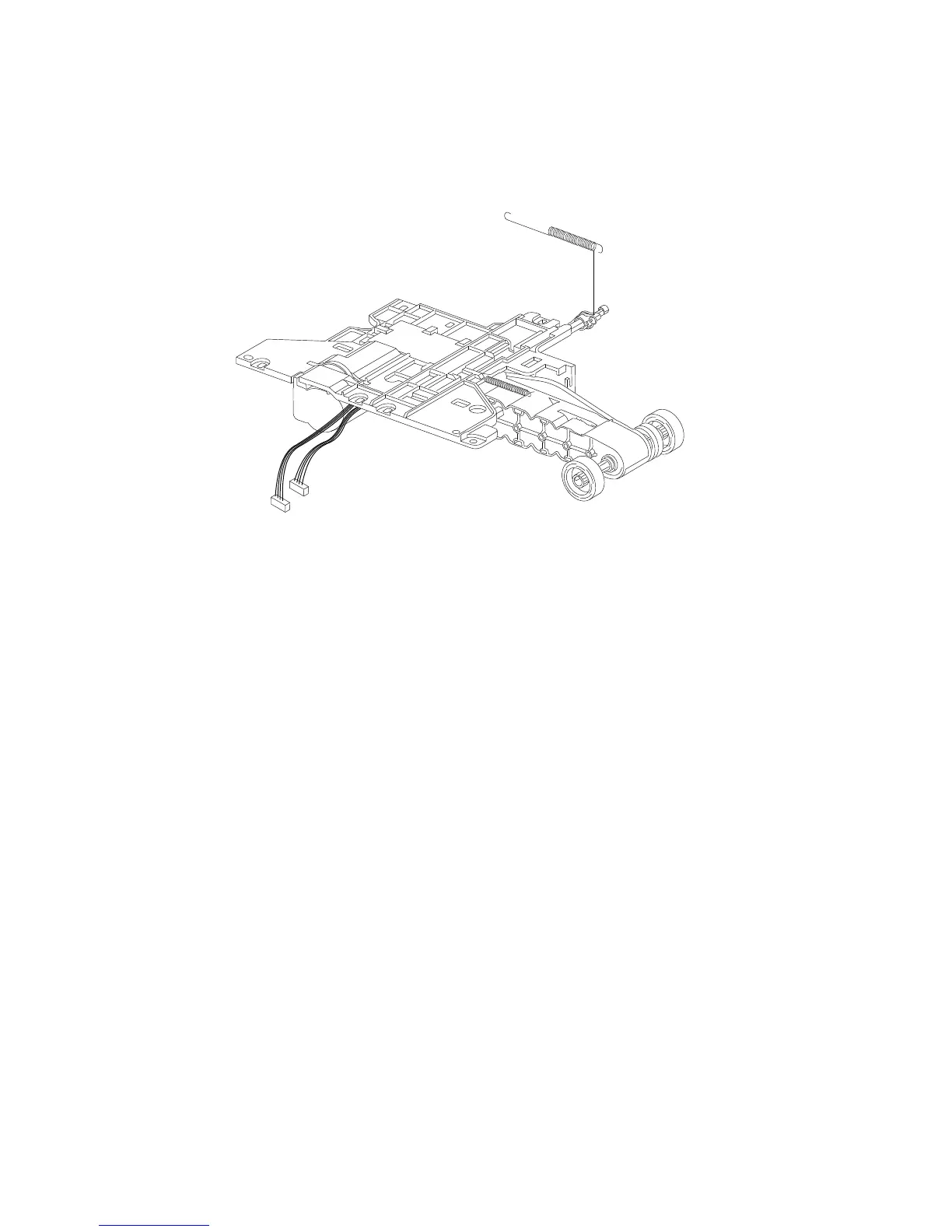

2. Remove the 550-sheet bellcrank recoil spring from the 550-sheet pick arm bracket assembly.
