4-54 Service Manual

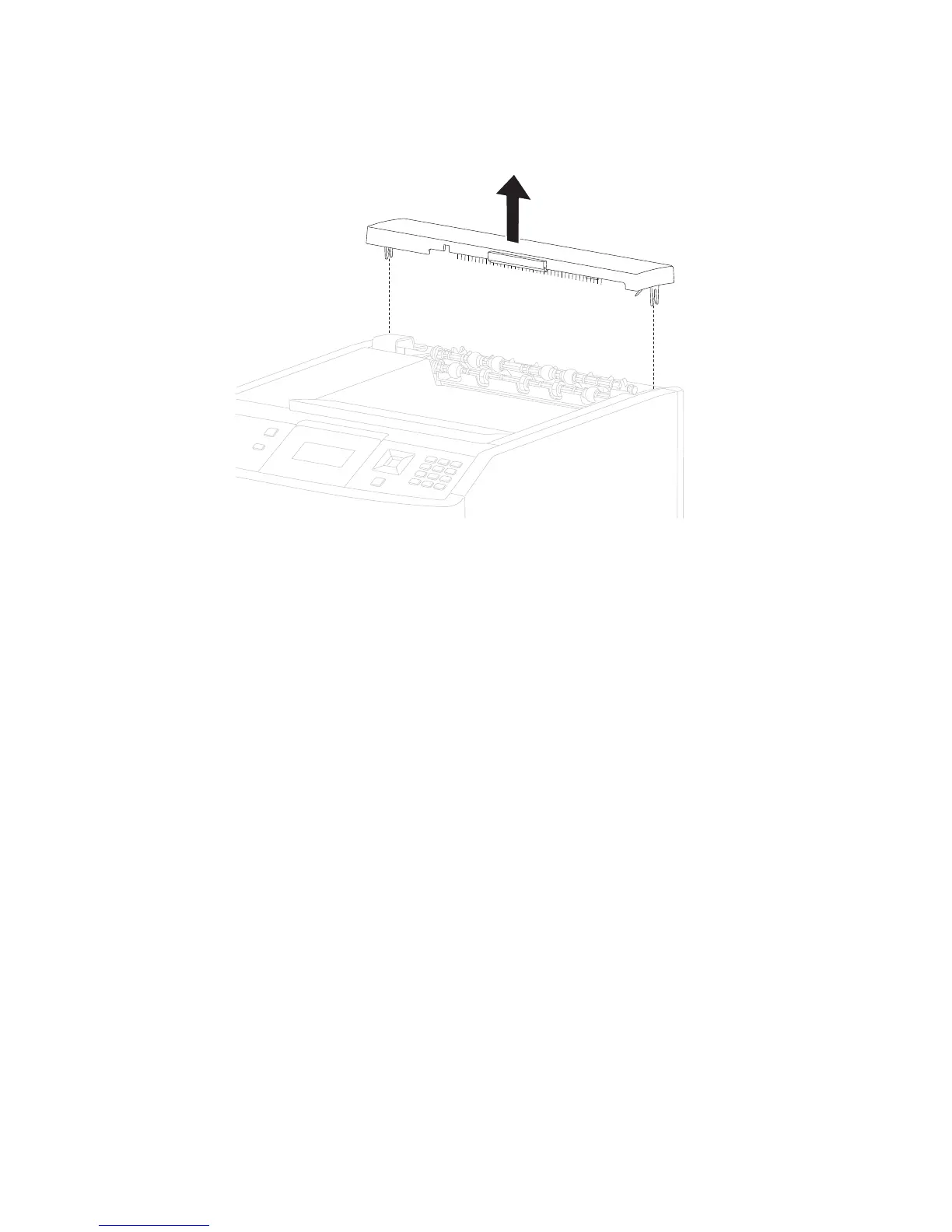

Output cover assembly removal

1. Unsnap the output cover assembly from the machine.

2. Remove the output cover assembly.
