Repair Information 4-53

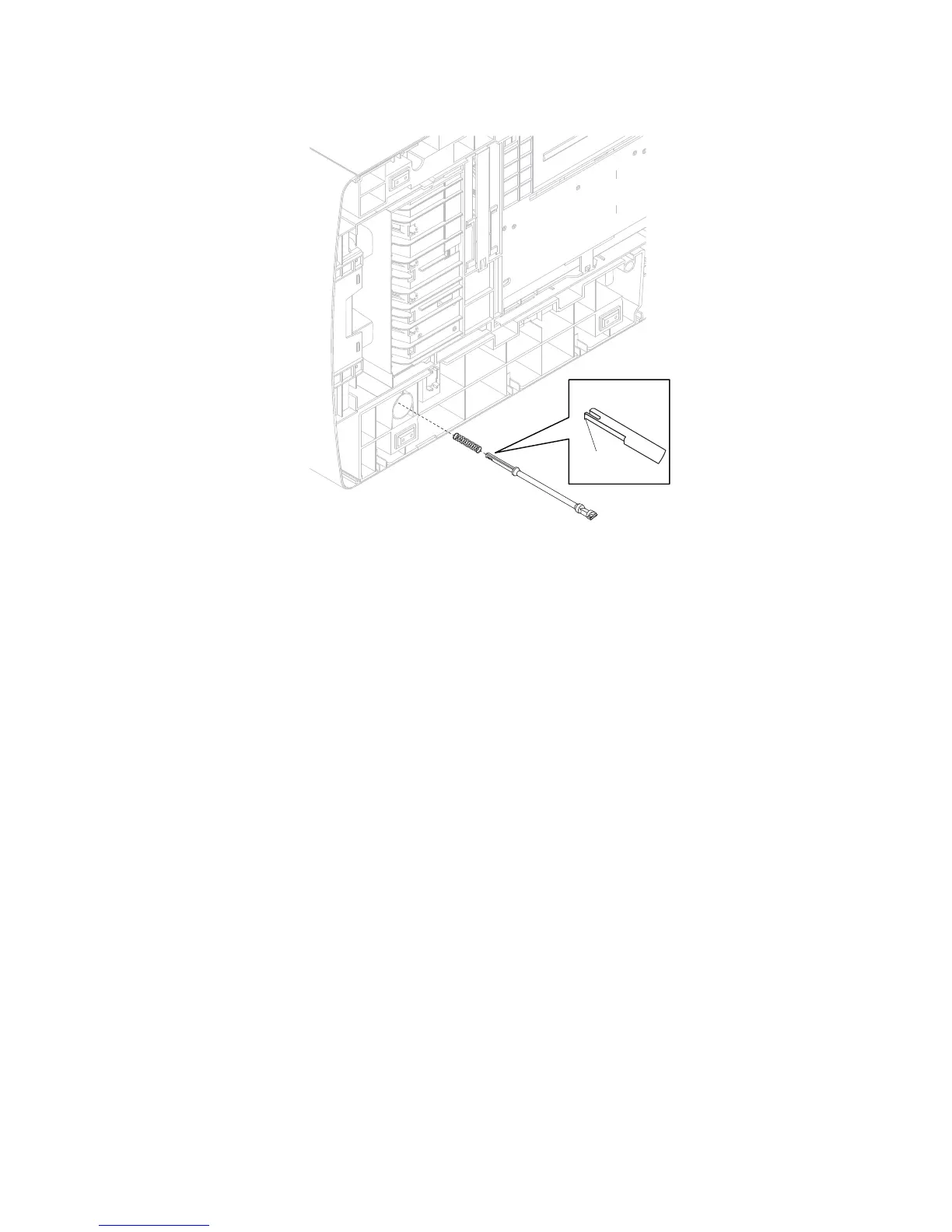

3. Remove the spring.

Replacement Warning: When replacing the option drive shaft, ensure that the plastic hook (A) is not

damaged, or the option drive shaft will not remain secured.

A
