Dell 5230dn Mono Laser Printer - SFP Stapler Assembly LED Sensor Cover Removal

Repair Information 4-177
SFP stapler assembly LED sensor cover removal

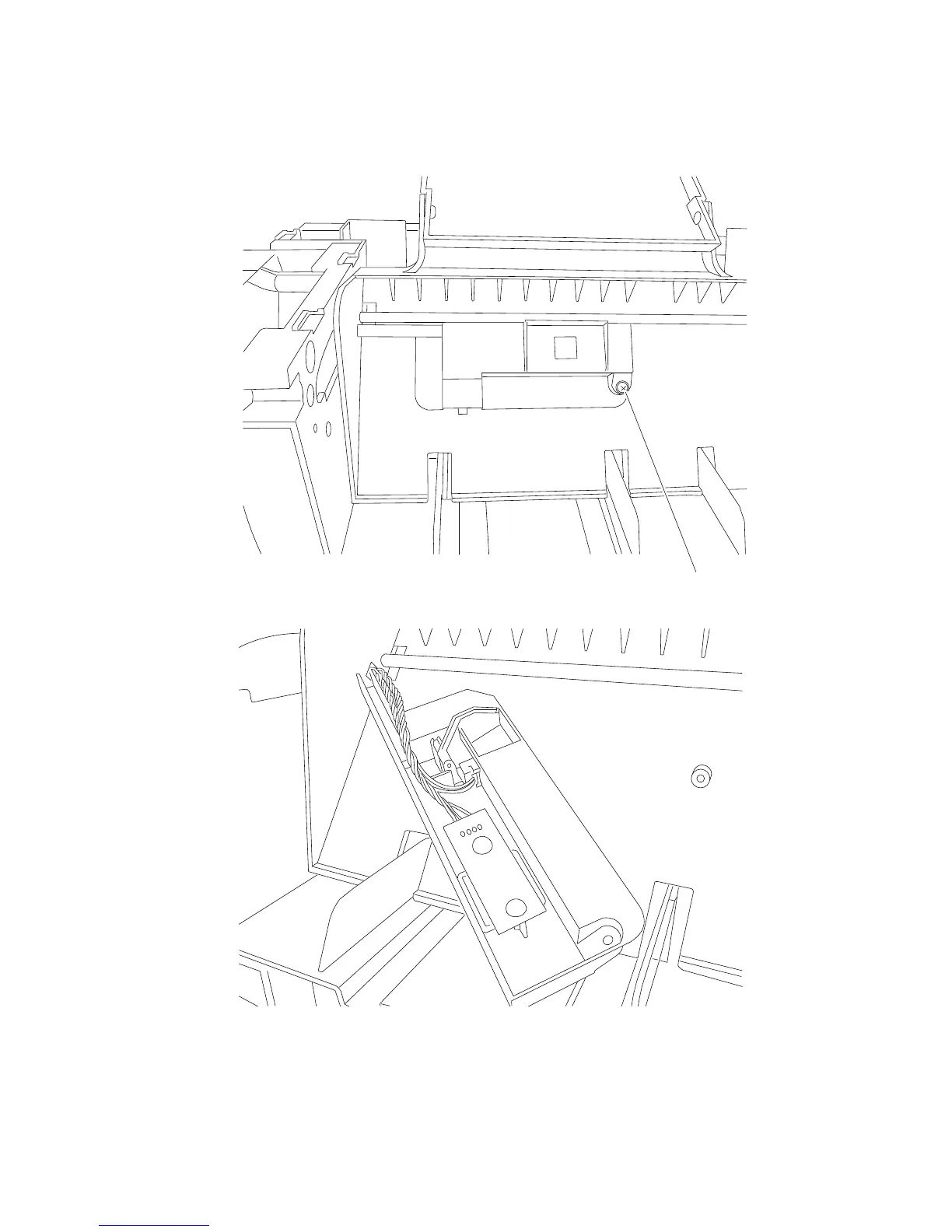

1. Remove the screw (A) securing the LED sensor cover to the underside of the output bin.
2. Remove the output bin LED. Go to “SFP stapler assembly standard output bin LED and LED clear lens
removal” on page 4-179.
3. Remove the sensor (finisher bin media present). Go to “SFP stapler assembly sensor (finisher bin
media present) removal” on page 4-178
A
