Dell 5230dn Mono Laser Printer - Bin Mailbox Sensor (Deflector Gate HP) Removal

4-100 Service Manual
5-bin mailbox sensor (deflector gate HP) removal
1. Remove the 5-bin left inner cover. Go to “5-bin mailbox left inner cover removal” on page 4-86.
2. Remove the following harnesses from the controller card: J14 A and B, J2, and J11.

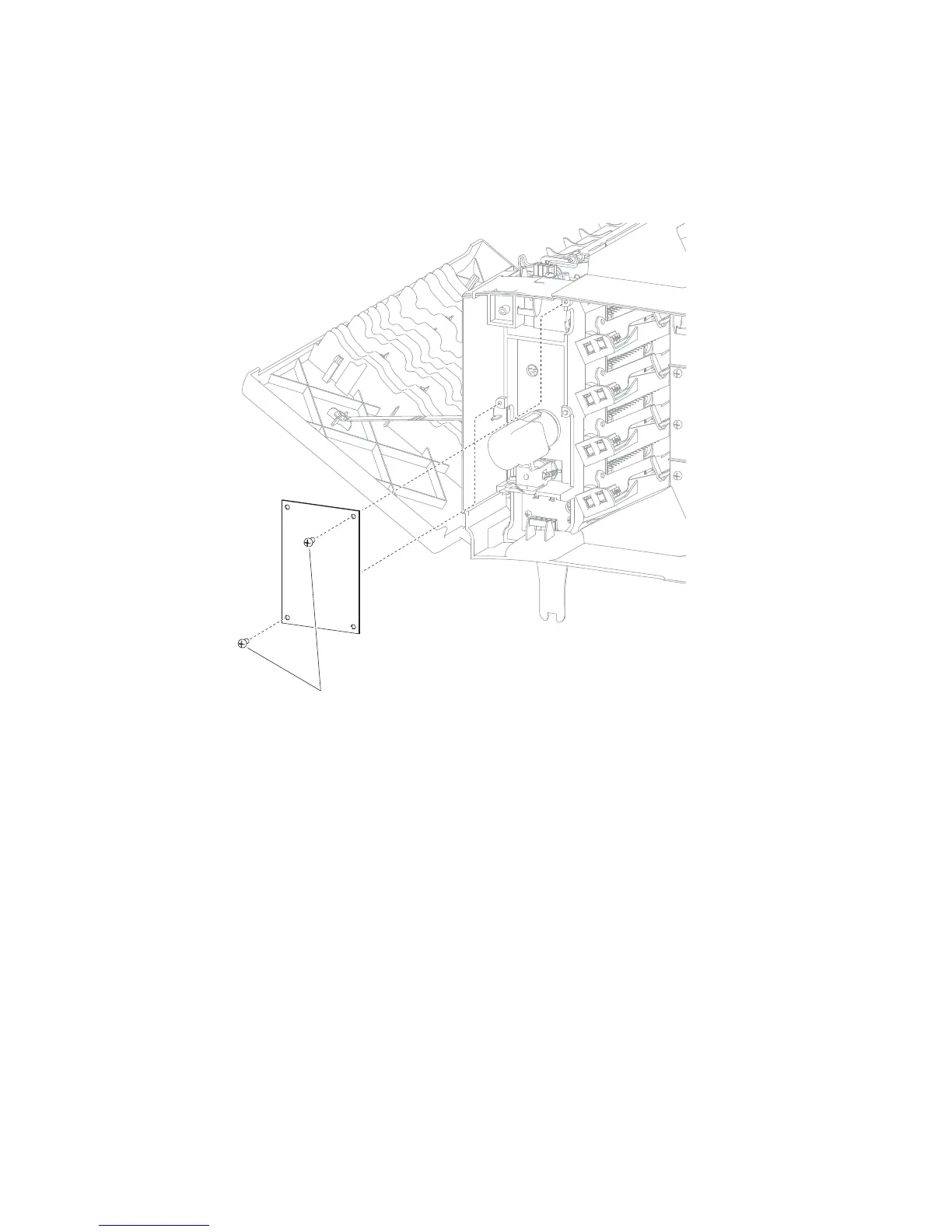

3. Remove the two screws (A) securing the controller card assembly and move the card to the side.
A
