Repair Information 4-101

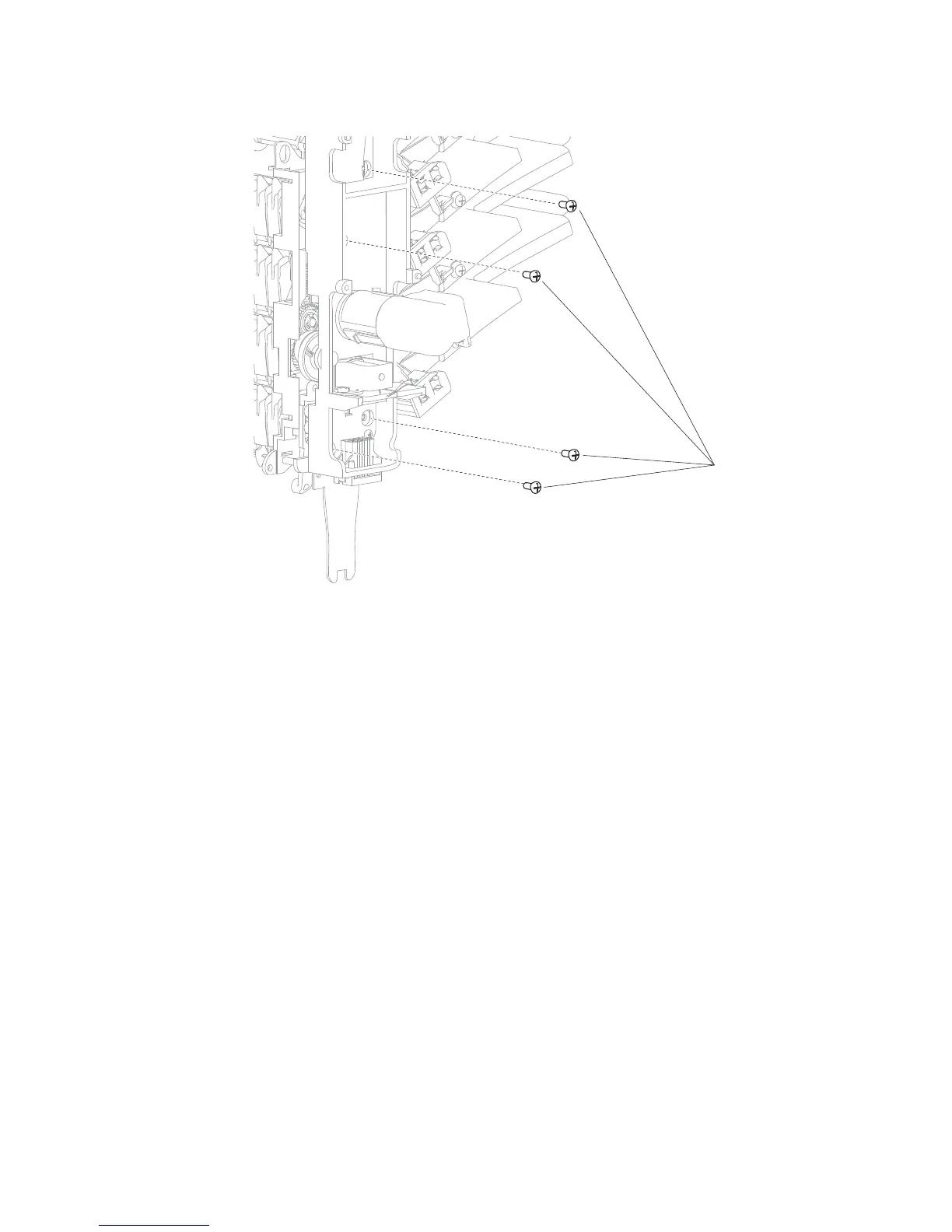

4. Remove the four screws (B) securing the left frame assembly to the 5-bin mailbox assembly.

5. Move the left frame assembly out of the way.

6. Remove the 5-bin mailbox sensor (deflector gate HP) by pressing the tabs.

B
