Dell 5230dn Mono Laser Printer - SFP Stapler Assembly Standard Output bin LED and LED Clear Lens Removal

Repair Information 4-179
SFP stapler assembly standard output bin LED and LED clear lens removal
1. Remove the LED sensor cover. Go to “SFP stapler assembly LED sensor cover removal” on
page 4-177.

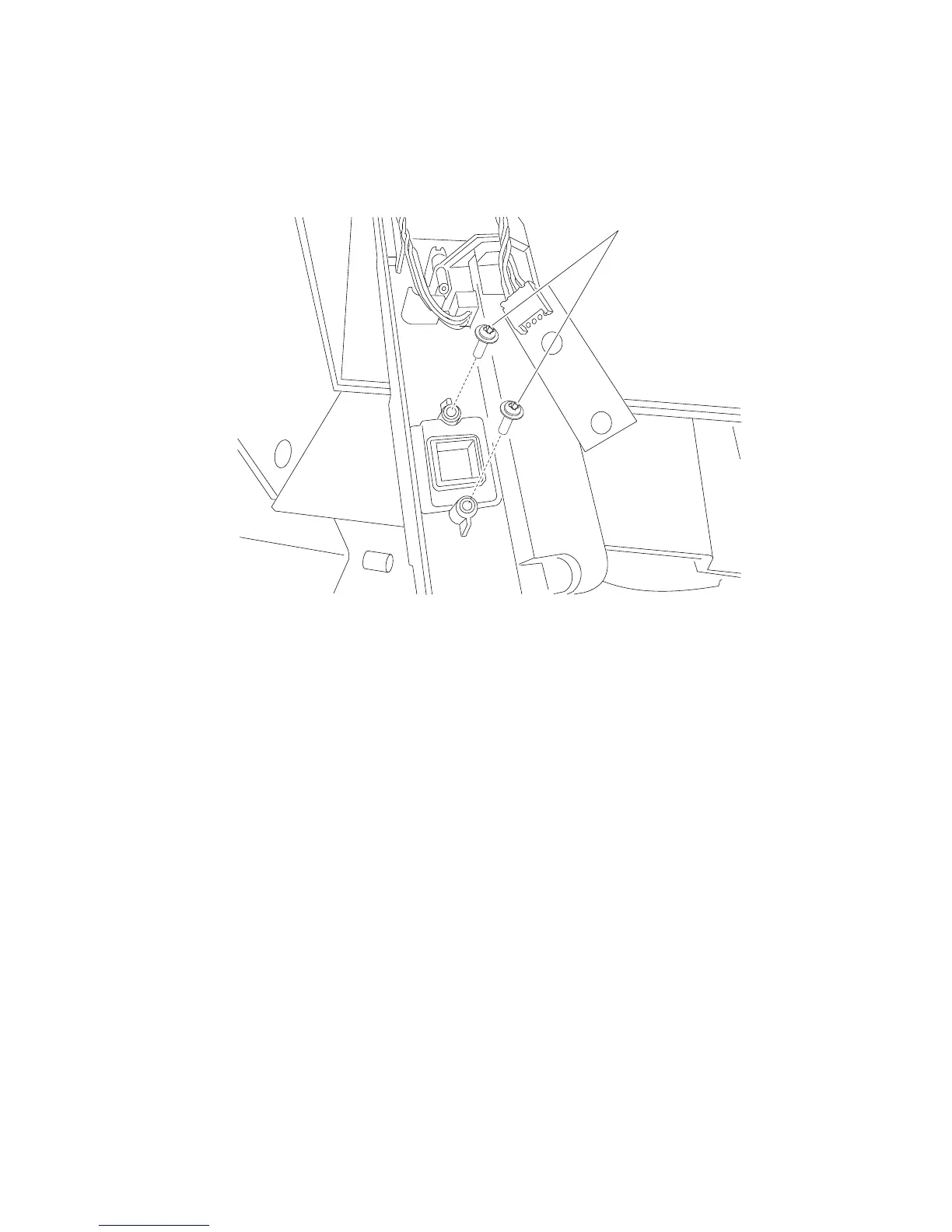

2. Remove the two screws (A) securing the LED to the cover.
3. Remove the LED and disconnect the harness.
4. Remove the LED clear lens.
A
