Dell 5230dn Mono Laser Printer - Transfer; Transfer Roll Assembly

3-68 Service Manual
Transfer
Transfer roll assembly
The transfer roll assembly applies charge to the rear surface of the media when the media passes between the
transfer roll assembly and photo conductor (drum). Thus, the toner image is transferred from the photo
conductor (drum) surface to the media surface.

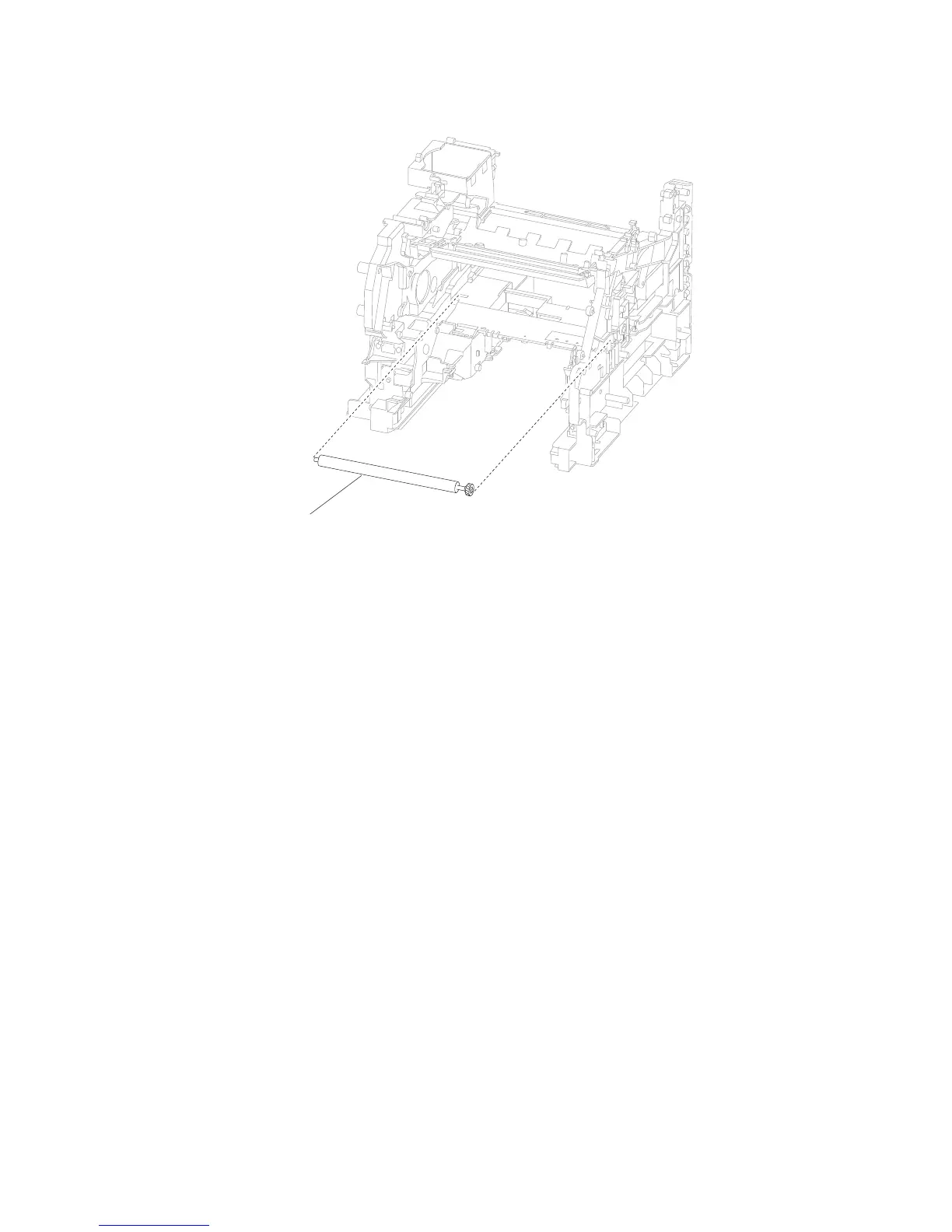

Transfer roll
