3-98 Service Manual

230 paper jam

Rear paper jams

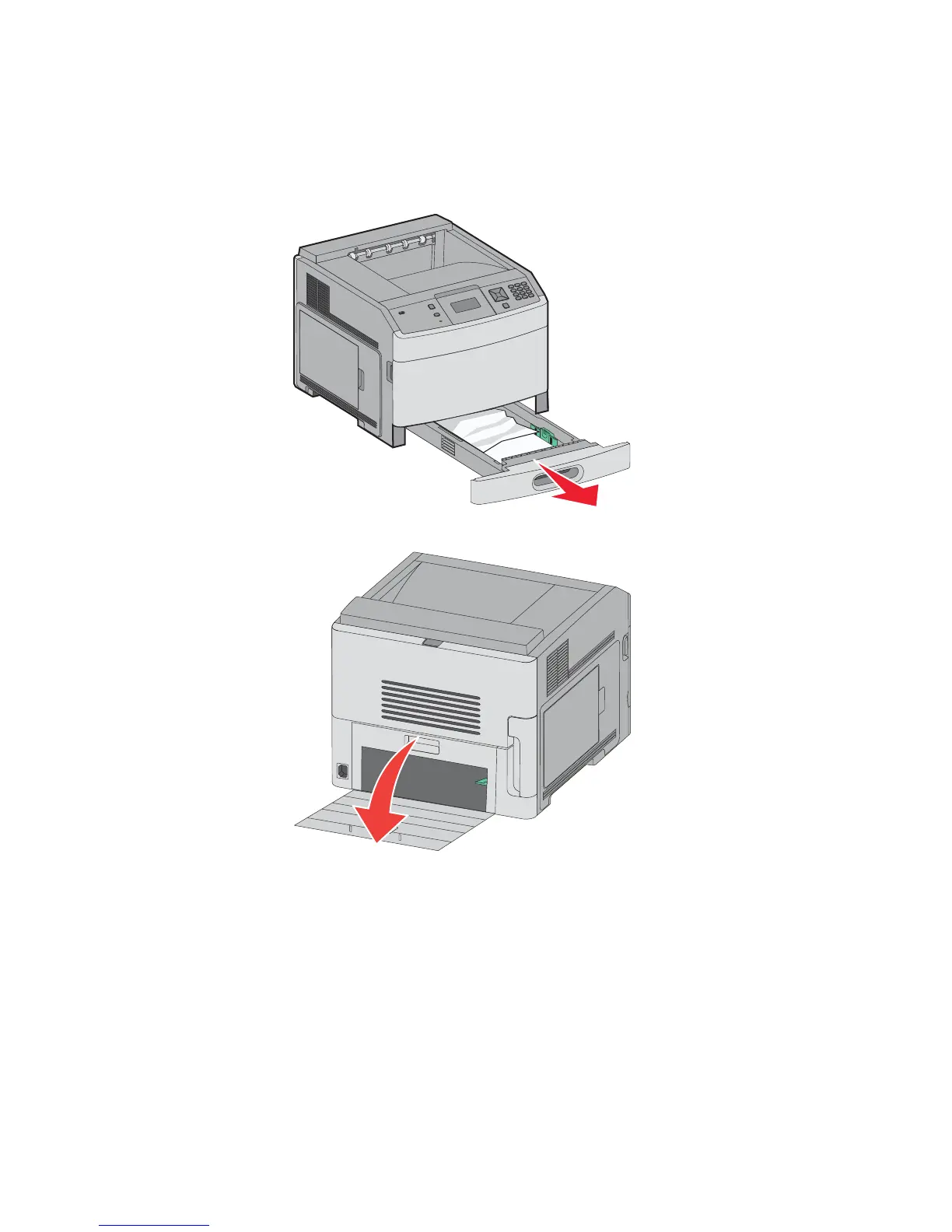

1. Remove the standard tray from the printer.

2. Pull down the bottom rear door.
