4-94 Service Manual
5-bin mailbox static brush mylar assembly removal
1. Remove the 5-bin mailbox top cover. Go to “5-bin mailbox top cover removal” on page 4-89.

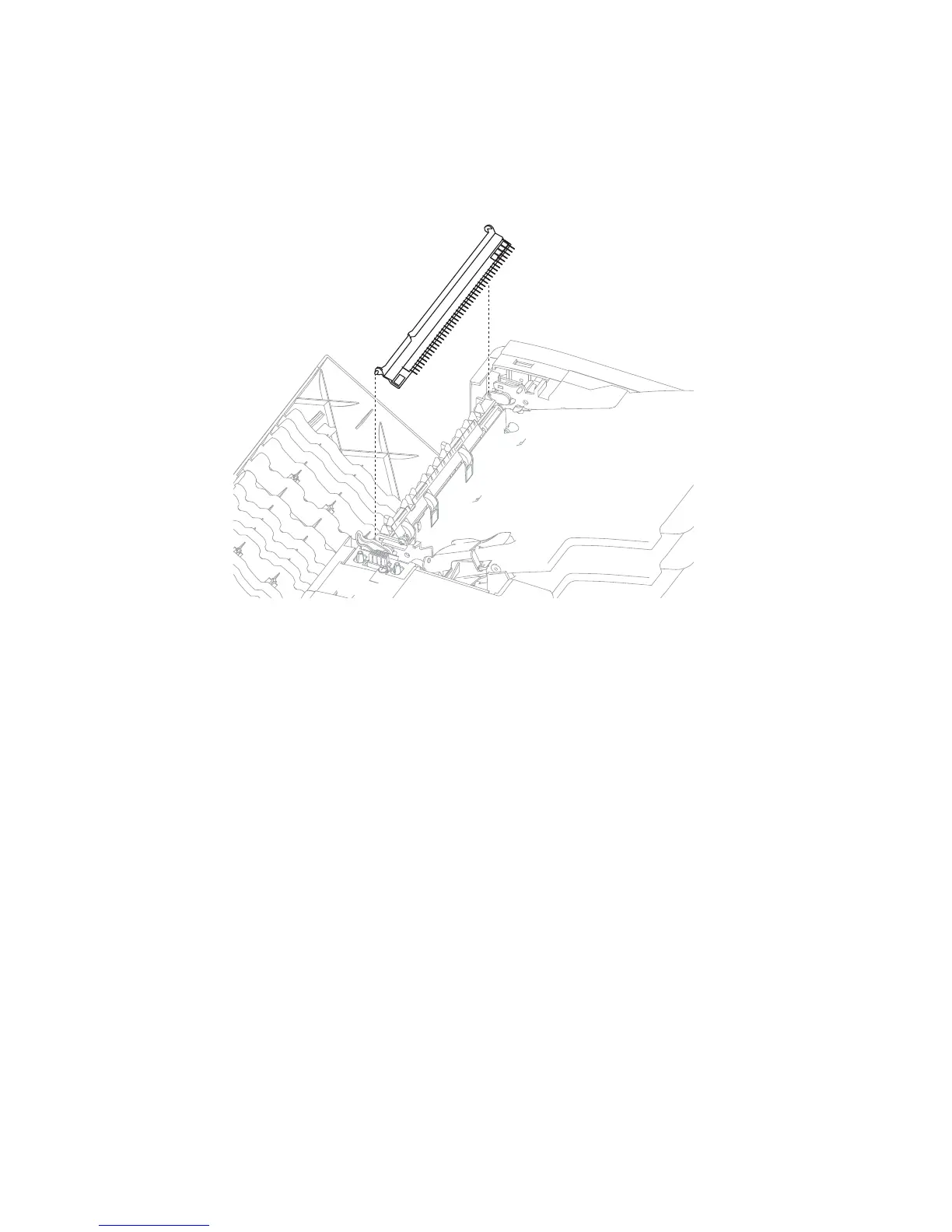

2. Carefully flex the 5-bin mailbox static brush mylar assembly to detach the hinges on each side.
3. Remove the 5-bin mailbox static brush mylar assembly.
