Dell 5230dn Mono Laser Printer - Front Paper Jams

Diagnostic aids 3-99

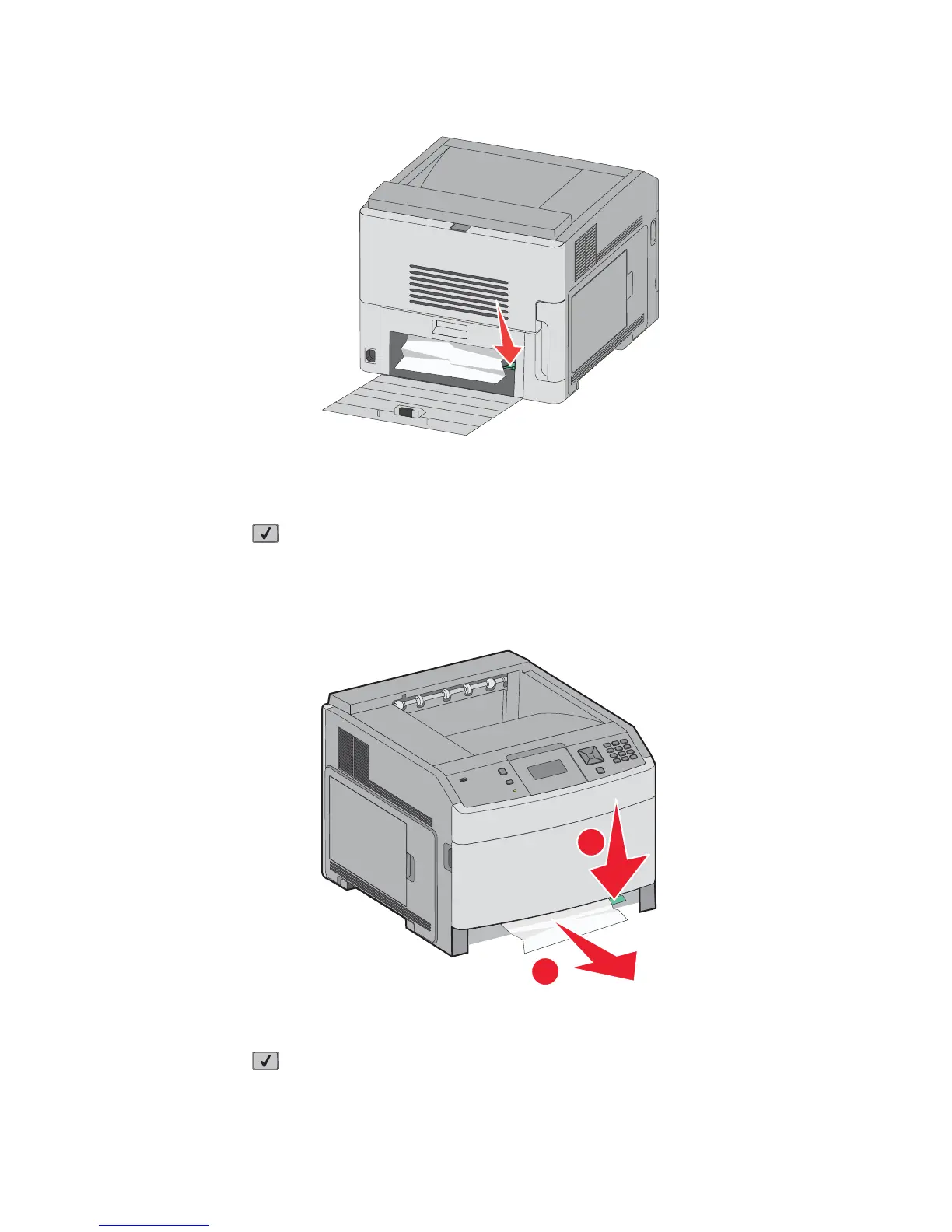

3. Push the tab down.
4. Remove the jammed paper.
5. Close the bottom rear door.
6. Insert the standard tray.
7. Press .
Front paper jams
1. Remove the standard tray from the printer.
2. Push the tab down.
3. Remove the jammed paper.
4. Insert the standard tray.
5. Press .
1
2
