4-72 Service Manual

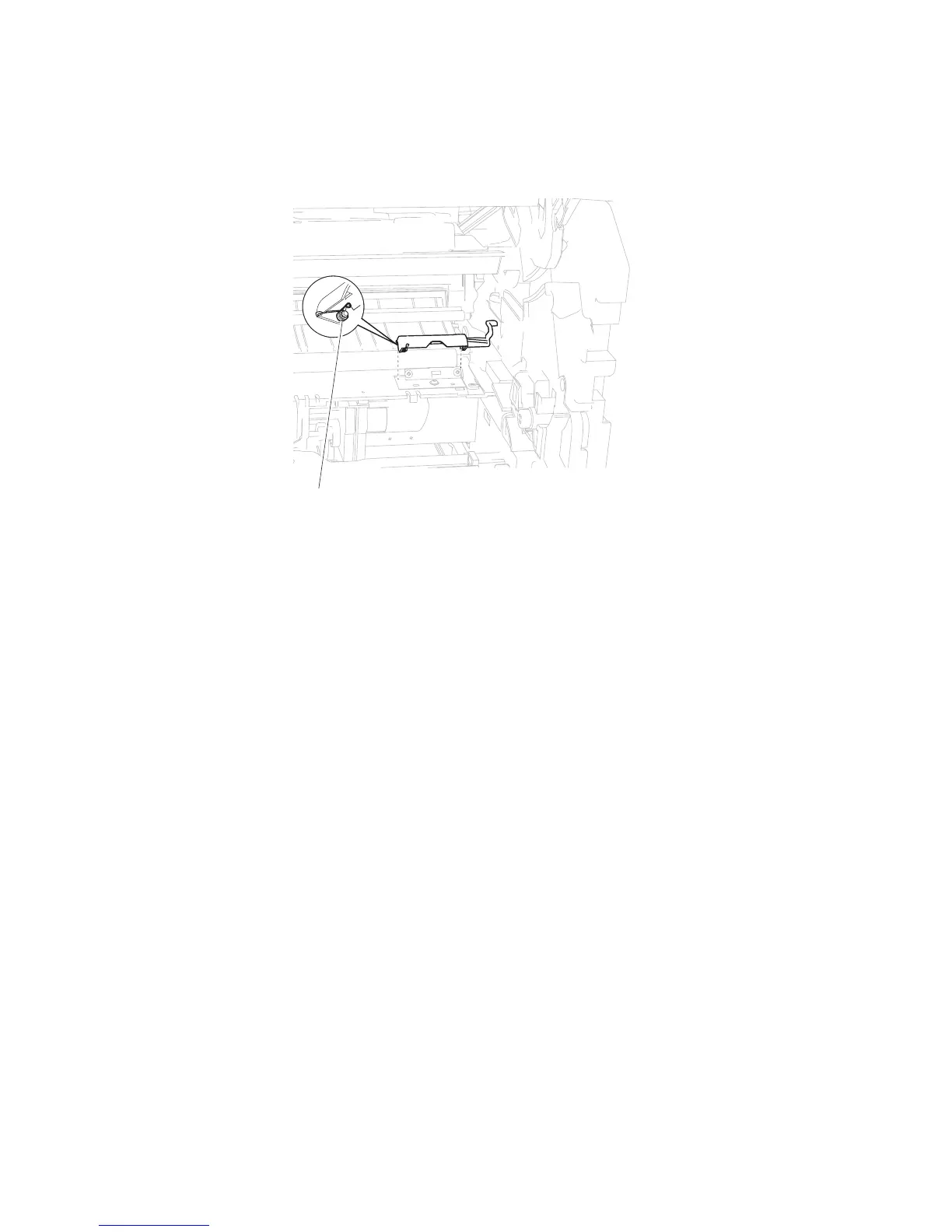

Sensor shield assembly removal
1. Remove the inner deflector. Go to “Inner deflector removal” on page 4-24.
2. Gently unsnap the sensor shield assembly from the machine.
3. Remove the sensor shield assembly.
Replacement Warning: When replacing the sensor shield assembly, ensure that the spring (A) is properly
aligned and the sensor shield assembly opens and closes properly.
To Next Page
