SFP stapler assembly sensor (stapler access door interlock) removal
1. Remove the right cover. Go to “SFP stapler assembly right cover removal” on page 4-173.
2. Disconnect the harness to the sensor (stapler access door interlock).

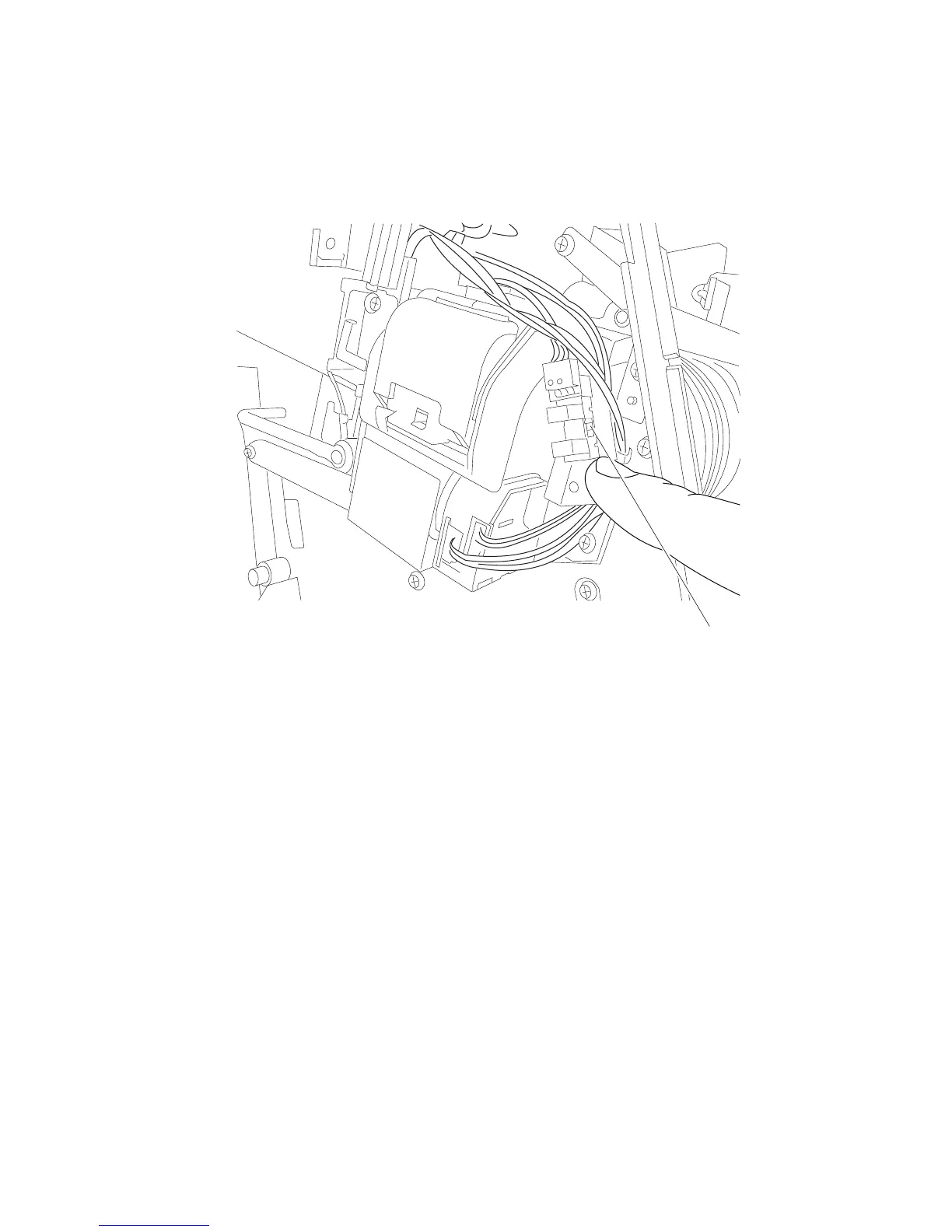

3. Using your fingers, pinch tab (A) securing the sensor (stapler access door interlock) and remove.
A
