4-134 Service Manual

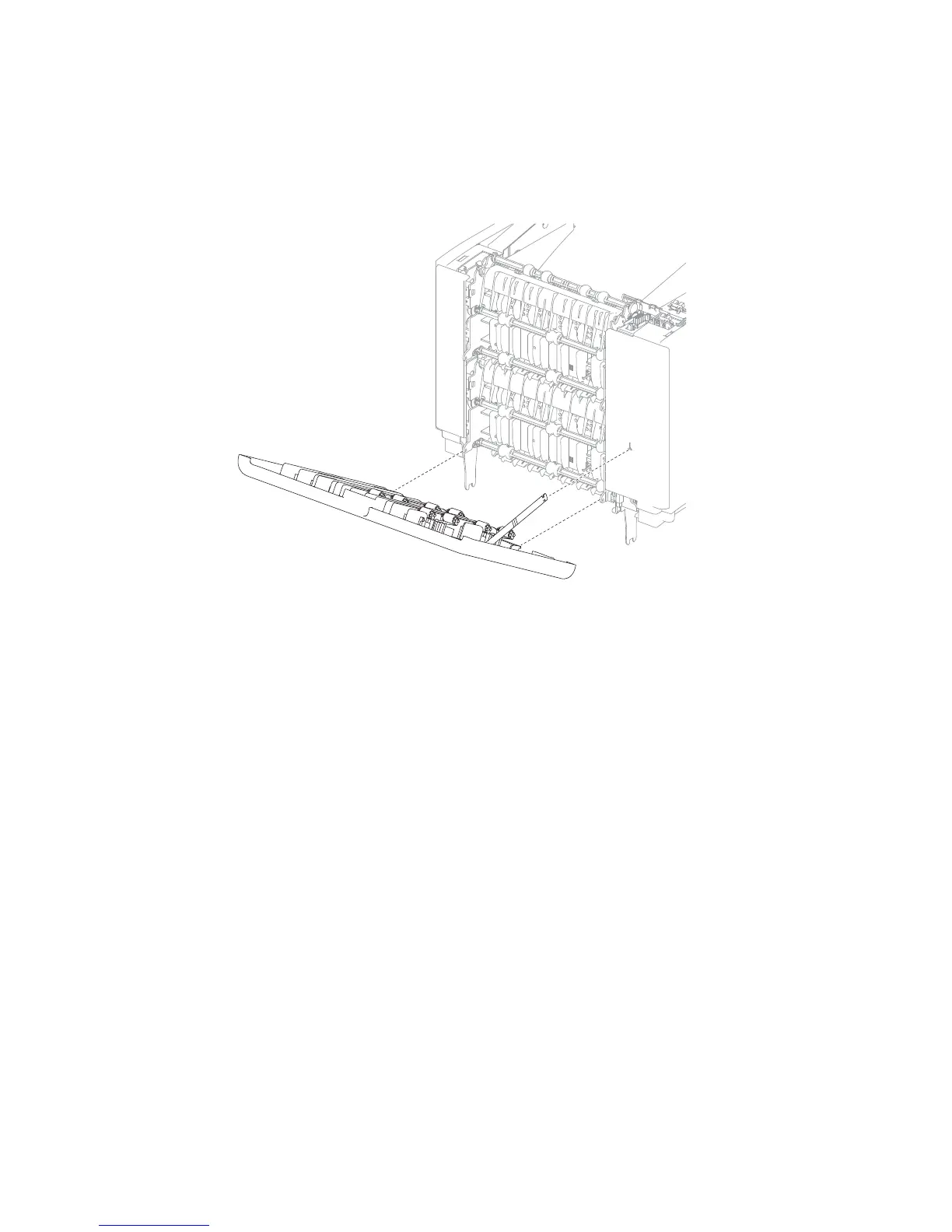

High capacity stacker rear door assembly removal

1. Open the rear door assembly.

2. Remove the rear door strap by twisting vertically and pulling it out of the slot.

3. Remove the rear door assembly from the hinges by gently prying the hinges off the bosses.
