4-84 Service Manual

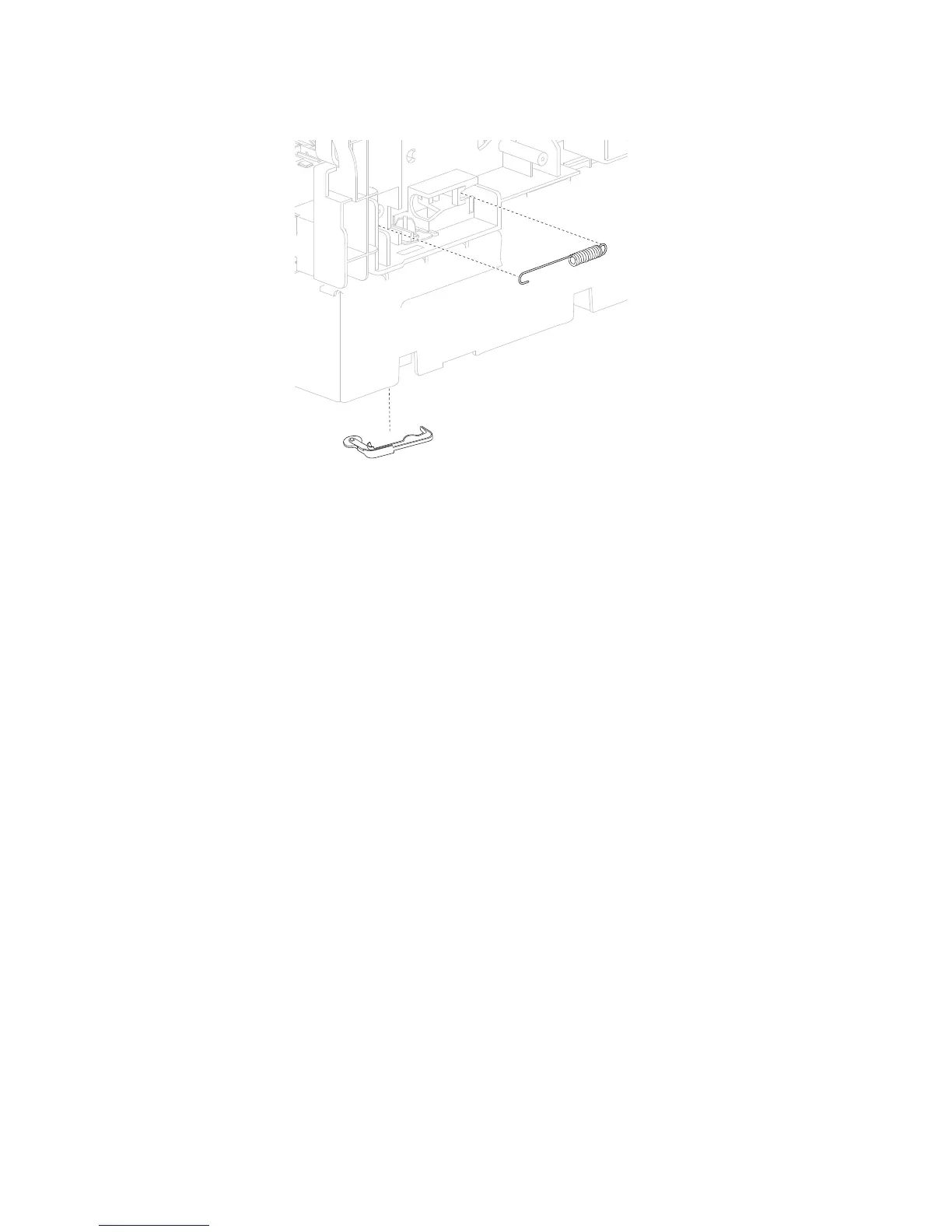

3. Release the spring from the machine.

Note: The tray roller catch assembly should be removed from the media tray cabinet.

4. Remove the tray roller catch assembly from the machine.
