Repair Information 4-47

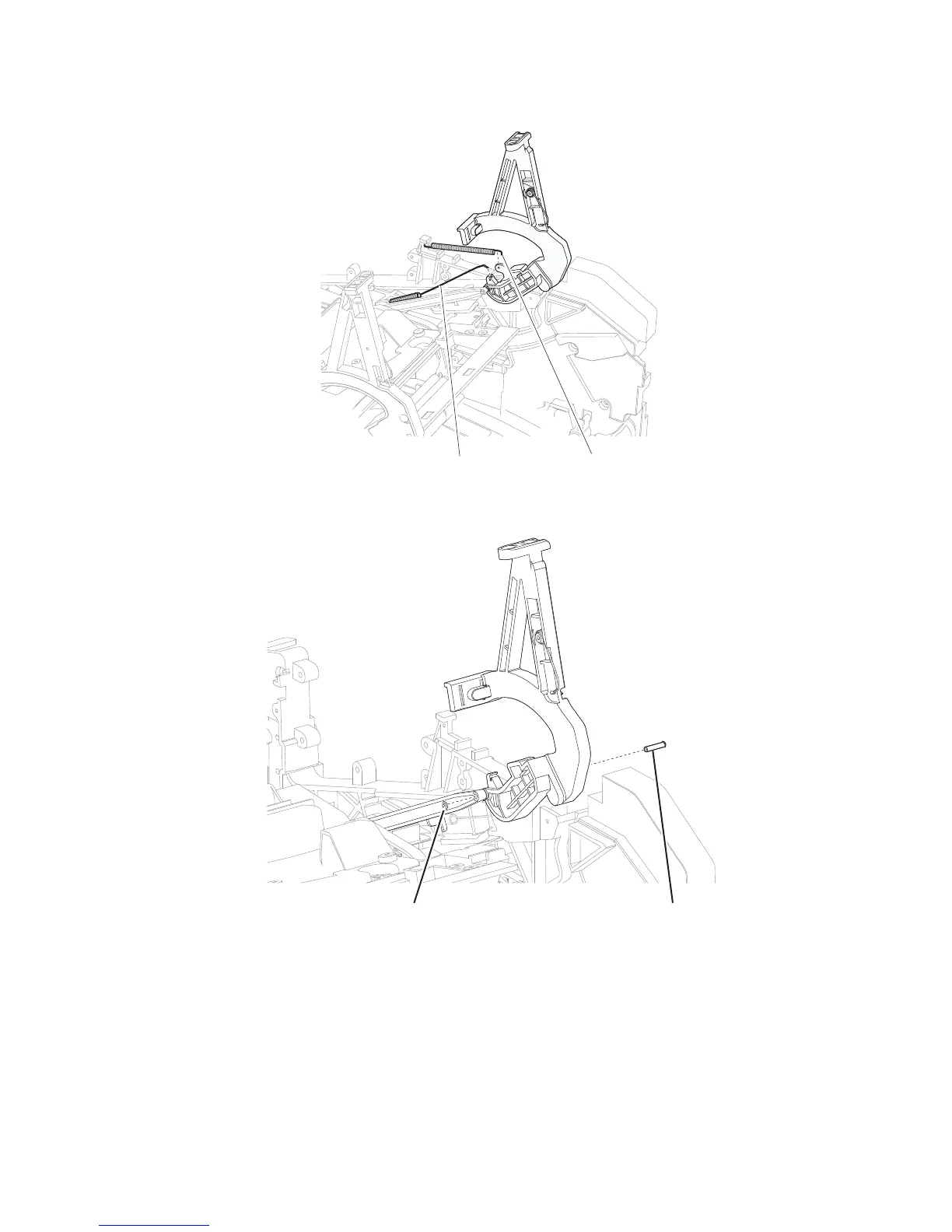

3. Detach the spring (B) from the operator panel hinge assembly, right.

4. Remove the E-clip (C) from the operator panel hinge assembly, right.

5. Remove the pin (D) from the operator panel hinge assembly, right.

B

A

C

D
